Description

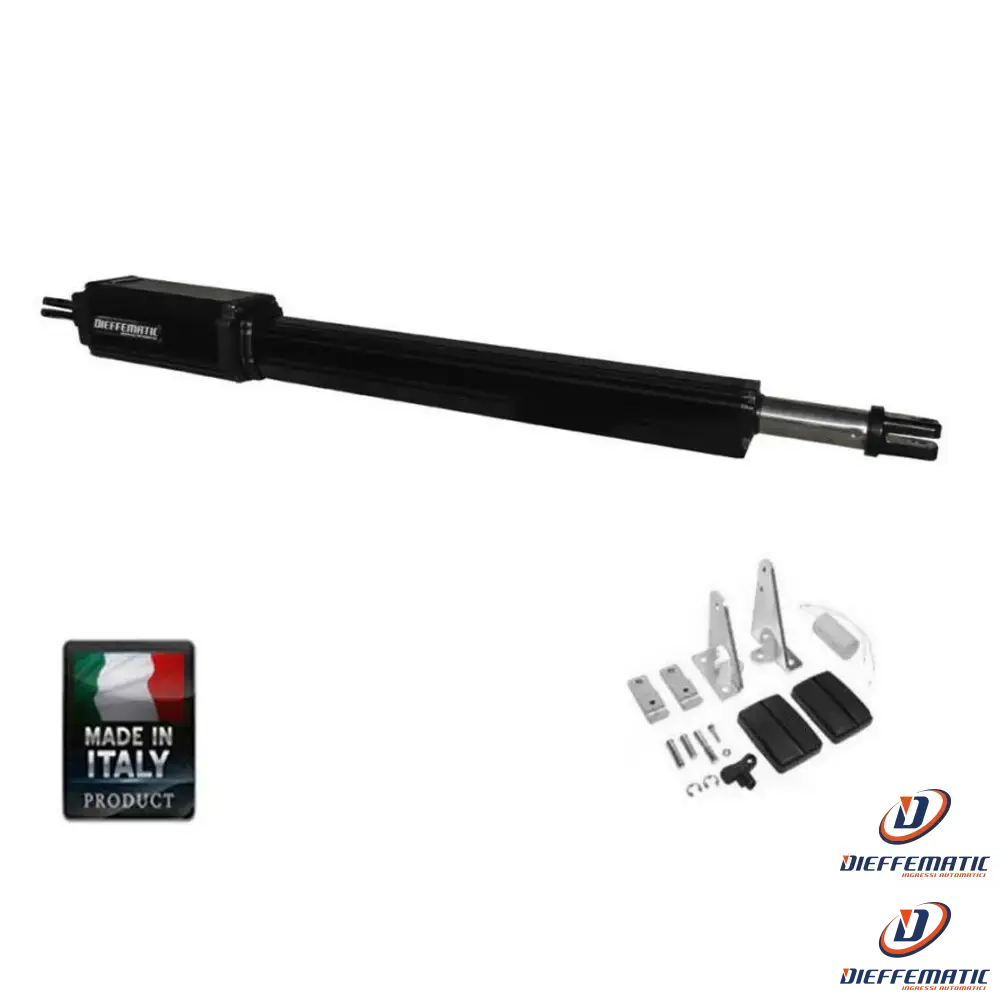

ACTUATOR for SWING gates
24V
CORSA 400
Professional
**Use for doors up to 2.50 meters and 200kg in weight**
Electromechanical linear actuator for condominium use, entirely metal structure, stainless steel stem.
VH automatic systems, once installed correctly, no longer need to be looked after,
since their maintenance is practically zero, installation does not require any modification to the existing gate!
High performance electric motor.
The actuator is built for leaves that do not exceed 200 kg in weight and 2.50 meters in length,
aluminum body and the heart of the bronze gears guarantee long life.
The actuator keeps the lock in closing and opening without the need for an electric lock for doors,
convenient release with triangular key located on the motor unit.
CLICK ON THE LINK FOR THE INSTRUCTION MANUAL:
MECHANICAL INSTALLATION MANUAL
COMPOSITION:
n° 1 linear electromechanical actuator for condominium use, for external uses
Emergency release with key. Does not require an electric lock.
Engine rpm 1,400. Power 60W. Thrust 1500 N. Maximum opening angle 100°.
24V power supply. Weight 6.5 kg
24 month warranty
