Description
230 V AC - 50 Hz
Electronic limit switch°
433.92 MHz radio receiver
Obstacle detector in both directions

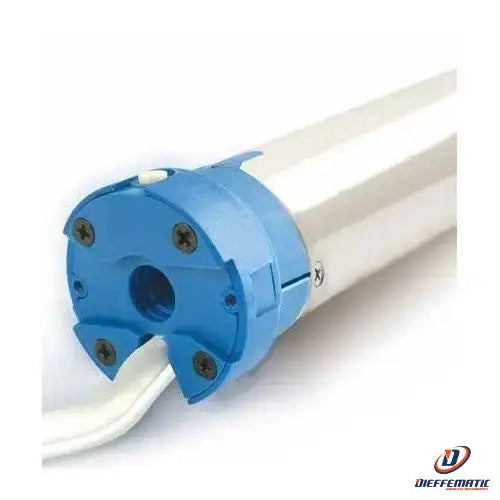

Mod. KLIMT SH5 - Ø 45
• Special for roller shutters
• Universal head for application of any fixing plate.
• Possibility of adjusting the intermediate end point (partial opening).
• Possibility of connecting a wired button with step-by-step control.
• Reversal of the direction of travel, in the event of an obstacle, when descending.
• FULL AUTOMATIC SETTING up to 20
Torque (Nm): 30
Speed Rpm (rpm): 15
Weight lifted (Kg)*: 55
Operating time (min): 4
Degree of protection (IP): 44
Absorption (A): 0.87
Power (W): 200
Length (mm) = L1:654
Weight (Kg): 2.6
Package dimensions (mm): 710 x 80 x 80
Packaged engine weight (Kg): 3.0
24 month warranty
