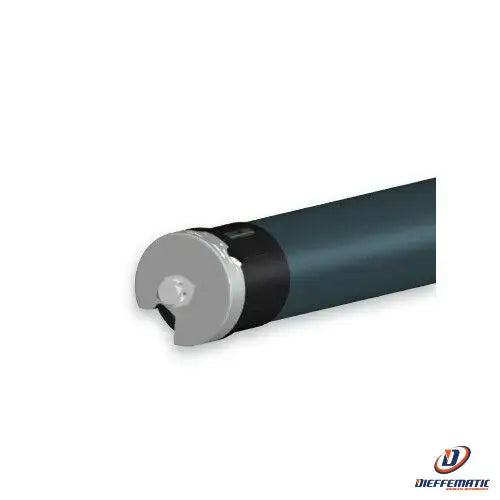

Tubular motor for roller shutters Asa Davinci 50 St 40/17 G1 A2 B1 2247454

Tubular motor with mechanical limit switch suitable for applications on roller shutters, blackout curtains and awnings.

Mod. DAVINCI 50 ST 40/17 G1 A2 B1

DA VINCI 50 ST is the ASA Ø50 tubular motor with wired mechanical limit switch, suitable for applications on roller shutters, blackout curtains and awnings. Available in 3 versions: standard head with 2 holes - head with pre-assembled square pin - star head.

- Power supply: 230 V ~ / 50 Hz
- Cable type: H05 VVF 4 x 0.75 White - Length 2.5 m
- Degree of protection: IP44
- Certifications: CE - VDE - NF
- Made in Italy

TORQUE: 40 Nm
SPEED: 17 Rpm
HR LAPS: 28
ABSORPTION: 240 W
LENGTH: 579 mm
ENGINE WEIGHT: 1.99 Kg

24 month warranty
