Tubular Motor For Curtains Large Rolling Shutters Asa Davinci 60 Mo 120/12 G1 A1 B1

Tubular motor with wired mechanical limit switch and emergency operation suitable for applications on awnings and shutters of large dimensions and weight.

Mod. DAVINCI 60 MO 120/12 G1 A1 B1

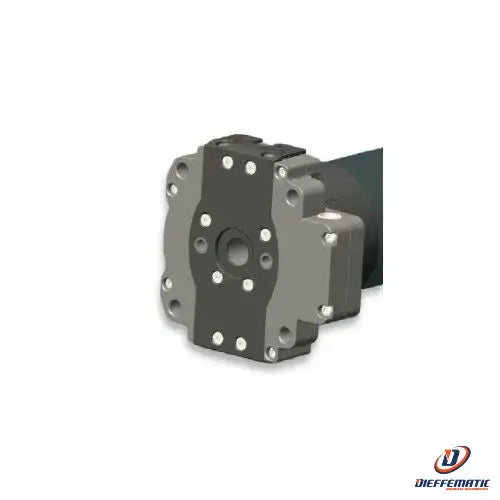

DA VINCI 60 MO is the ASA Ø60 tubular motor with wired mechanical limit switch and emergency operation, suitable for applications on roller shutters and awnings of large dimensions and weight.

- Power supply: 230 V ~ / 50 Hz
- Cable type: H05 VVF 4 x 0.75 White - Length 2.5 m
- Degree of protection: IP44
- Certifications: CE - VDE - NF
- Made in Poland

TORQUE: 120 Nm
SPEED: 12 Rpm
HR LAPS: 27
ABSORPTION: 400 W
LENGTH: 687 mm
ENGINE WEIGHT: 5.00 Kg

24 month warranty
