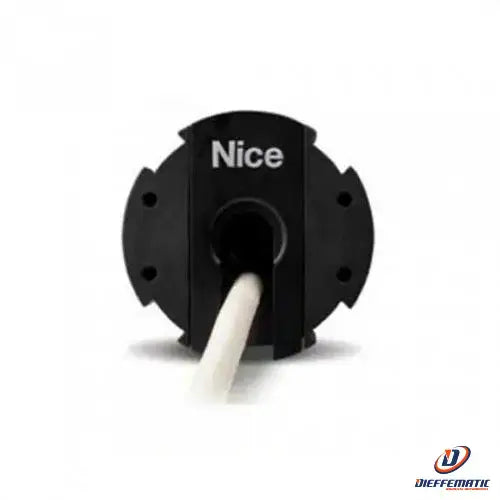

Tubular Motor For Curtains And Shutters Era M Ø 45 Mm Nice And Mat Ma 3017 Warranty

Tubular motor with electronic limit switch, integrated receiver and TTBUS. Ø 45 mm. 30 Nm, 17 rpm

Tubular motor with electronic limit switch, integrated radio receiver and Nice TTBus technology. Ideal for roller shutters. Size M Ø 45 mm, 30 Nm, 17 rpm, 56 kg. Complete and intuitive programming. Easy remote limit switch adjustment via transmitter or with the external O-View TT and TTP programming units, in automatic, semi-automatic or manual mode. Convenient feedback through the movement of the roller shutter. Layered programming: fast and safe. Thanks to this function, the setting provides some choice possibilities, and in the event of an incorrect selection, programming restarts from the previous level without the need to reprogram all the settings performed up to that moment. Memory lock to prevent accidental storage. Regulation of multiple intermediate opening positions. Thanks to the 3-wire Nice TTBus technology: possibility of controlling the movement of the motor through a low voltage command; Possibility of connecting and controlling multiple motors in parallel from a single point without the need for additional control units, thanks to the integrated electronic card. Security for automation. Maximum precision of the roller shutter positions. Dynamic self-updating function of the limit switches (only for automatic and semi-automatic modes) which allows the lengthening and shortening of the structure to be compensated for over time. In fact, the encoder technology guarantees millimetric precision, maintenance of the set values over time, even in the presence of high temperatures, and always optimal effort on the shutter. Perfect movement even in the presence of friction: it protects the roller shutter from breakages caused by frost, thanks to the effort control during the ascent and recognizes the obstacle when descending. This recognition is adjustable. It guarantees adequate resistance to break-in. Particularly suitable for compact applications: useful length of 426 mm, in versions up to 5 Nm and 8 Nm at 17 rpm. Low stand-by consumption.

Form E MAT MA 3017

24 month warranty
