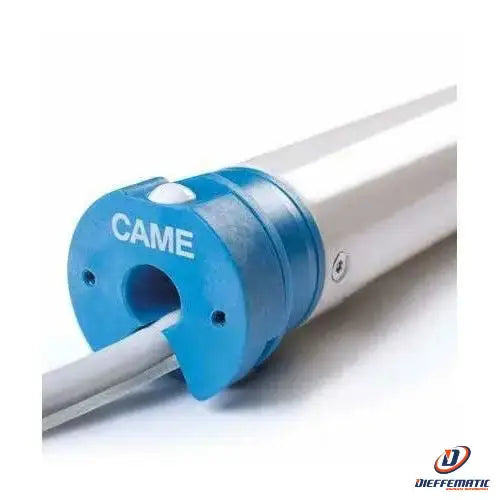

Tubular Motor For Came Klimt 4 Rolling Shutters - Ø 35 001y4006a281kl Automation

230 V AC - 50 Hz
Electronic limit switch°
433.92 MHz radio receiver

Mod. KLIMT 4 - Ø 35

• Possibility of use on 40 mm round tube or
octagonal.
• Ideal for small sun protection screens or roller shutters.
• Motor protection in case of blocking of the winding action.
• Easy adjustment of the limit switch and opening of the programming window via a button positioned on the motor head.*
• Possibility of adjusting the intermediate end point (partial opening).

Torque (Nm): 6
Speed Rpm (rpm): 28
Weight lifted (Kg)*: 17
Operating time (min): 4
Degree of protection (IP): 44
Absorption (A): 0.53
Power (W): 121
Length (mm) = L1: 572
Weight (Kg): 1.46
Package dimensions (mm): 540 x 70 x 70

24 month warranty
