Towing Automation Kit For Open Sommer Garage Doors S10606-00011 Automatisms

Towing automation kit for garage doors

OPEN mod

SKU: S10606-00011

APERTO automations are suitable for universal use on sectional and spring-loaded doors, counterweighted overhead doors, folding doors and swing doors with the use of various types of adapter arms.

Quality
Garage automations are tested and certified according to the most stringent directives. 30 years of experience gained in the sector guarantee the high quality standards of our products, obviously "Made in Germany".
• universal automation for sectional, ceiling, overhead, tilting*, lateral sectional and sliding doors
• LED technology: long-lasting and efficient lighting
• Made in Germany
• Low energy consumption: <1 Watt stand-by (corresponds to approximately €1.80 of electricity per year)

Safety
• motor with high self-locking force which actively opposes opening in the event of a break-in attempt at any point
• wear-free chain for greater tensile strength
• possibility of connecting a buffer battery for use in the event of a power cut
• periodic tests of safety devices
• thanks to the emergency release (pull cable) the motor slide can be inserted and disengaged in any position
• SOMloq2 bidirectional encrypted radio system
• secure 128-bit AES encryption; rolling code

Binary unit
• The track available in the basic equipment allows you to open sectional doors up to a height of 2,500 mm and overhead doors up to 2,750 mm. With a track extension it is possible to open even higher doors (available as an accessory).Installation

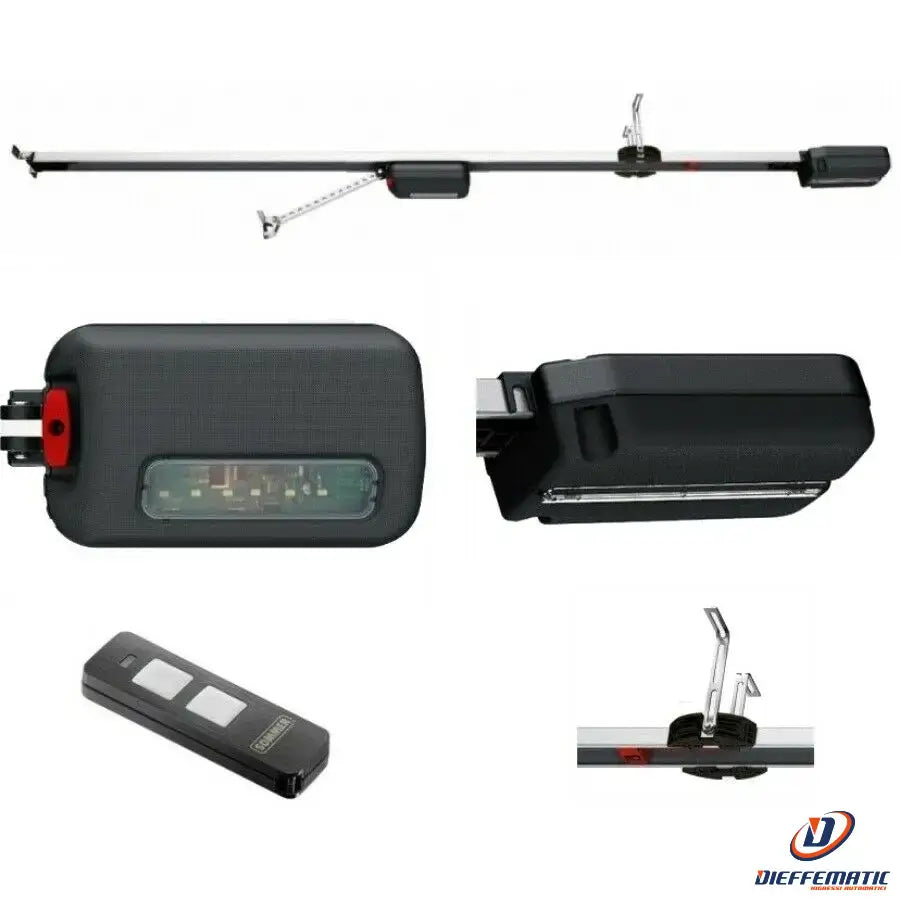

COMPOSITION:
N. 1 towed group with 550N thrust force composed of:
Slide with integrated radio receiver (FM 868.95 MHz SOMloq2, 20 memory locations)
Control unit housing
LED lighting in the slide
Pearl 2-channel remote control
Three-part track, slide, control unit housing, ceiling fixing bracket, retainer, push arm, fixing bracket and fixing material.

Maximum tensile force and pressure: 550 N
Rated tensile force: 165 N
Rated absorbed current: 0.49A
Nominal absorbed power: 95 W
Standard stroke: 2,750 mm
Max. stroke: 4,942 mm
Sectional door: 3,500 mm / 2,500 mm
Overhead door: 3,500 mm / 2,500 mm
Folding door: 3,500 mm / 2,500 mm
Lateral/horizontal sliding sectional door: 2,500 mm / 2,300 mm
Stroke (standard): 2,750 mm
Max. stroke extended: 4,942 mm 2× extensions (1,096 mm)
Max. door weight: 100 kg
Max. speed: 200 mm/s
Power consumption (power saving mode): < 1 W
On duration after S3: 40%
Number of memory locations: 20
Relative noise: < 59db (automation only
Protection class: IP 21

24 month warranty
