Description
BFT
PHOBOS AC KIT A50
Product code R935305 00002
Complete 230 V kit for swing gates up to 500 kg in weight and 5 m in length.
Electromechanical automation systems for swing gates
230 V electromechanical irreversible operator for swing gates up to 500 kg in weight and 5 m in length.
Magnetic pin: exclusive feature of Bft operators which allows installation with maximum comfort,
blocking the operator in the rear bracket without the use of tools.
For safe transmission.
BFT transmitters use a Rolling Code coding system
which manages the commands in complete safety and prevents any type of external violation.
Pressing a button on the transmitter sends an always different code to the control unit,
identifiable only by the recipient and accepted only once.
The generated algorithm then prevents the code from being reproduced.
| Command center | ALENA SW2 |
| Board power supply | 230V |
| Motor voltage | 230V |
| Absorbed power | 210W |
| Max. width swing | 5 m |
| Max. weight swing | 500kg |
| Useful rod stroke | 460 mm |
| Maximum angle | 129th |
| Maneuver time | 18 s |
| Limit switch type | Work time |
| Slowdown | no |
| Block | Mechanical |
| Unlocking | Personalized key |
| Impact reaction | Electronic clutch |
| Frequency of use | Semi intensive |
| Degree of protection | IPX4 |
| Environmental conditions | -20 ÷ 55 °C |
| U Link | no |

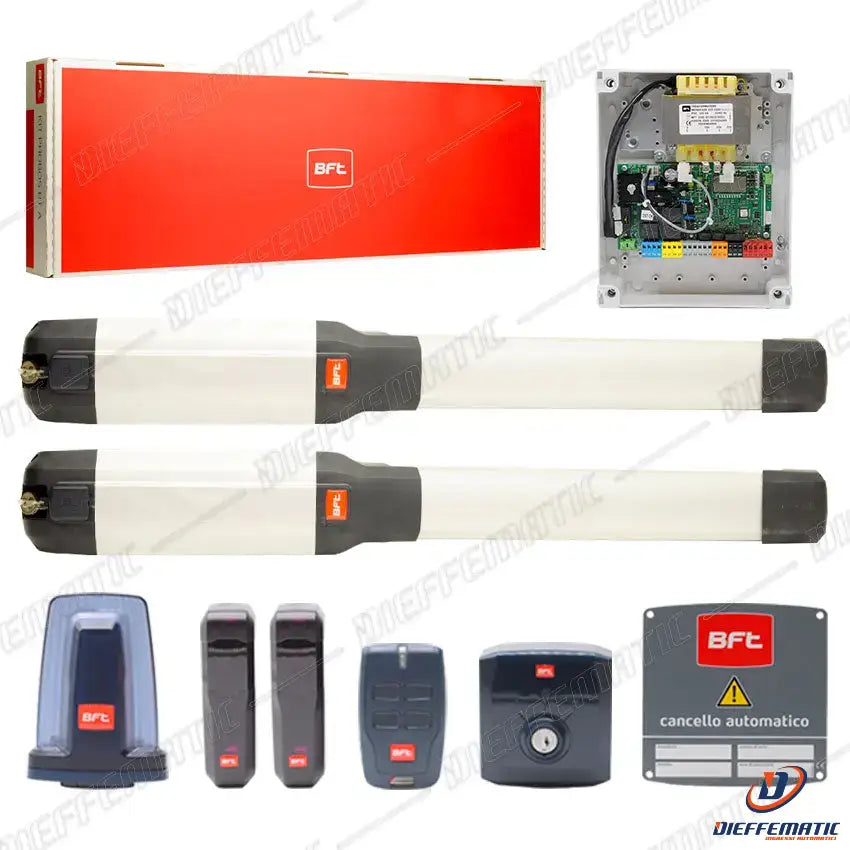

KIT COMPOSITION:
N°2 PHOBOS AC A50
P935097 00002
No. 1ALENA ACL2
ALTAIR P control panel.
No. 1RADIUS B LTA 230 R1
Flashing light with integrated antenna for 230 V powered engines.
No. 1COMPACT
Pair of self-aligning photocells. Range 20 m. 24 V ac/dc power supply.
No. 1Q.BO KEY WM
Outdoor key selector with double contact.
No. 1MITTO B RCB04 R1
4 channel transmitter. Range 50/100 m. 12 V power supply with 1 23 A battery.
No. 1CMS
Warning sign.
24 month warranty
