Description
600Kg 230v
Professional
**possibility to install the encoder group (optional)**
Mod. KV6 230v
- Irreversible electromechanical gearmotor for the automation of sliding gates,
with totally metal gears, guarantee of performance and reliability.
- Solid and safe, it features a painted die-cast aluminum body and ABS protective casing.
- It is equipped with an innovative magnetic limit switch system, which is easy to adjust and guarantees high positioning repeatability.
- Particularly suitable for use in places where the presence of snow is frequent, thanks to the absence of contact between the limit switch and the rack.
- A convenient personalized key release system allows manual movement of the door in the absence of mains voltage.
- Control unit with radio receiver, in a special container with an airstop seal to protect against humidity and insects
- Intelligent: automatic stroke programming, motor torque adjustment and speed slowdown.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

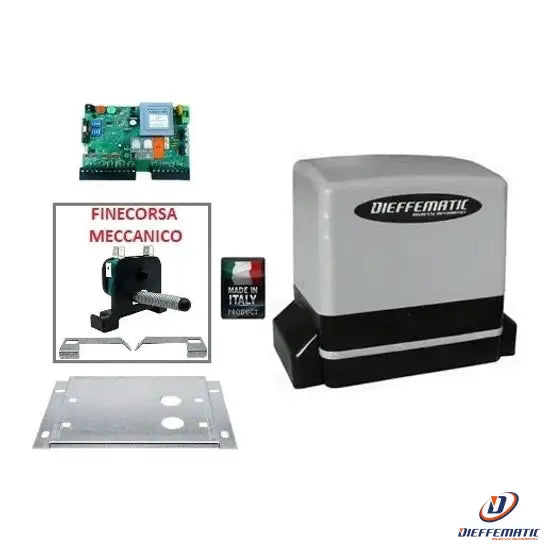

COMPOSITION OF THE KIT:
- n° 1 electromechanical gearmotor 600 kg,
220V power supply with key release,
Dimensions H270 X W230 X D210 mm.
Weight 8 kg.
- n° 1 Galvanized foundation plate
- n° 1 control unit located in the engine crankcase,
with motor force adjustment trimmer and obstacle detector, slowdown in opening and closing,
4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic. Pedestrian entrance, Courtesy light,
Overvoltage protections, input for photocells and safety edges
-----
- n° 1 single-channel radio receiver incorporated in the control unit (433.9 MHz)
- n° 1 Antenna incorporated into the control unit, range 20 meters (433.9 MHz)
- n° 1 warning sign
- n° 1 Installation accessories
- n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
