Shipping
shipping in 2-4 business days
Description
Complete Kit for AutomationSliding gate
1500 kg
ideal for the automation ofgates for intensive use/industrial
Professional
Mod. TH 230v
Electromechanical gearmotor for external installation with totally metal gears, guarantee of performance and reliability
Sophisticated pre-wired electronic control unit.
Advanced: thanks to the independent management of the opening and closing stroke.
Safe: thanks to the photocell control function which checks the correct functioning of the photocells firstof every movement.
Base entirely in die-cast aluminium.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
KIT COMPOSITION:
No. 1Electromechanical gearmotor 1500 kg (with built-in electronic equipment)
220V power supply with key release, Dimensions H335XL275XP203 mm.Speed 12 m/min (UNI 8612 standards),Weight 13 kg
n° 1 Galvanized foundation plate
n° 1 control unit positioned in the engine crankcase, with trimmer for regulating the engine force andobstacle detector,
slowdown in opening and closing, 4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic.
Pedestrian entrance, Courtesy light, Protection against overvoltages, Input for photocells and safety edges
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated into the control unit, range 20 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 Pair of wall-mounted photocells

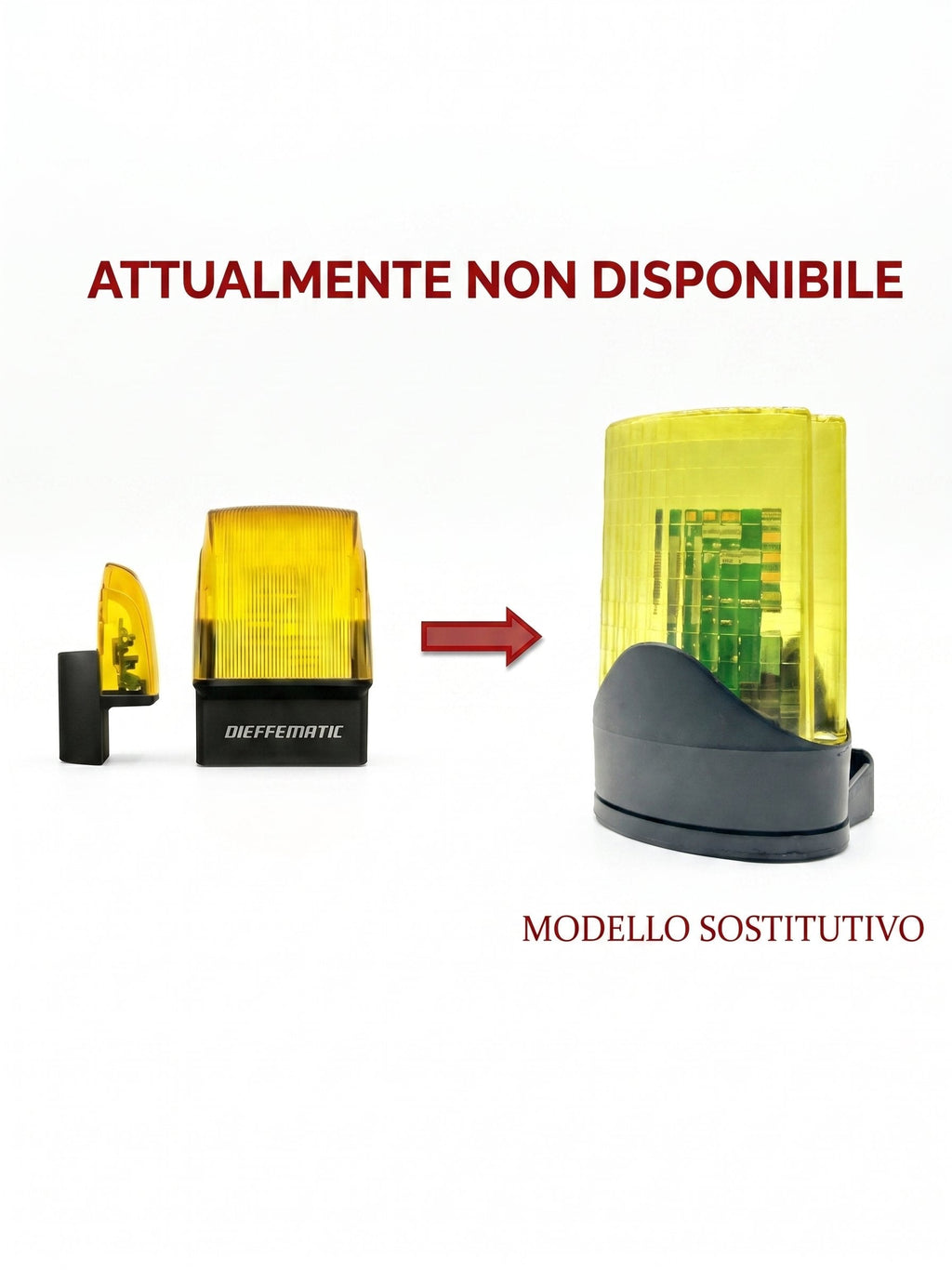

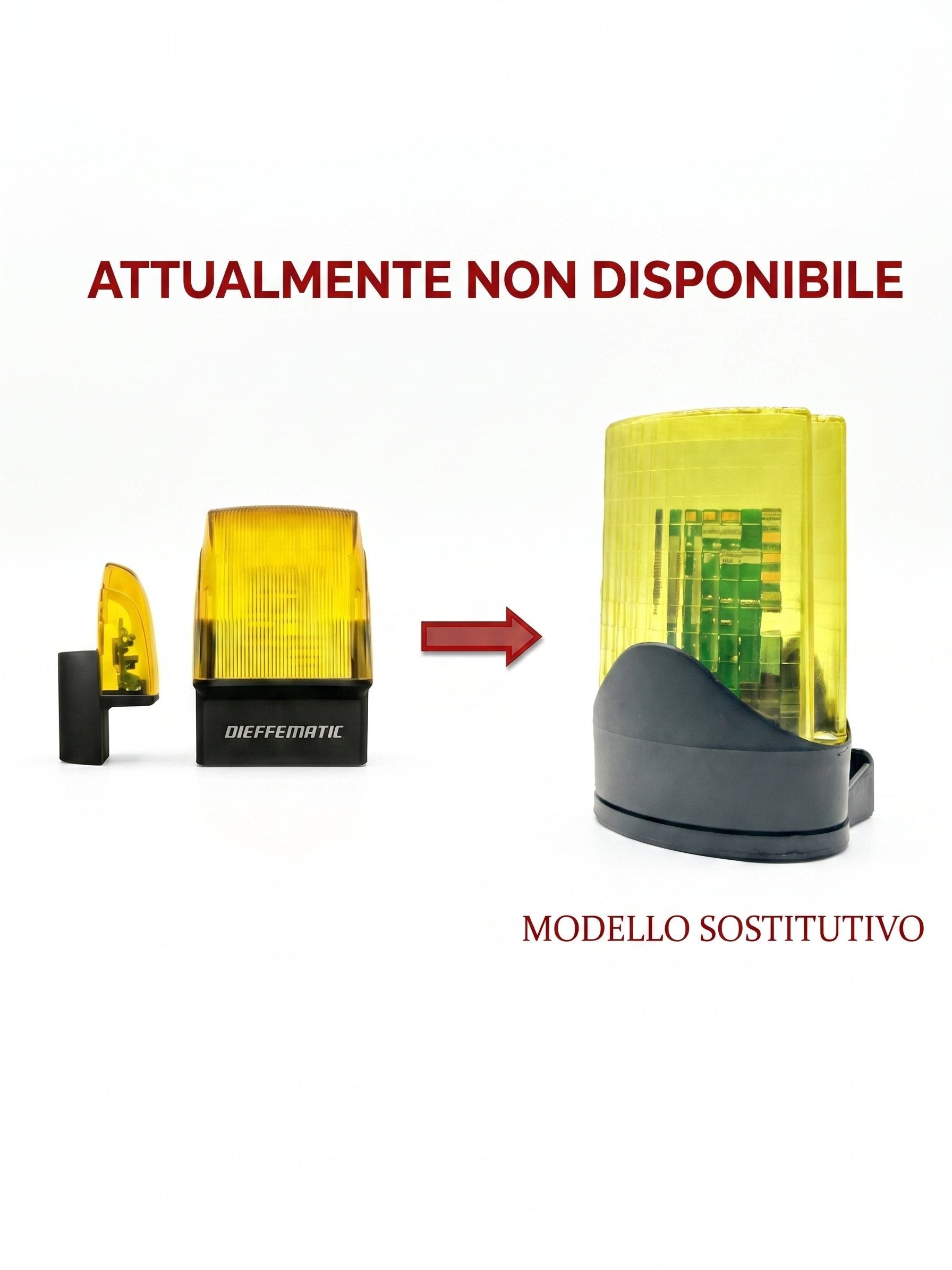

n° 1 230v flashing light
n° 1 Warning sign
n° 1 Installation accessories
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
