Description

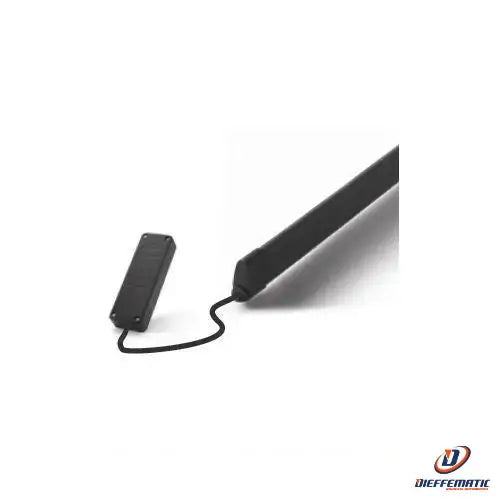

CONDUCTIVE SENSITIVE EDGE (LENGTH 1.6 m, PROFILE 95 mm)
8.2 KO SAFETY DEVICE FOR SWING / SLIDING GATES
Mod. BSH95L16 (EX 950/BSH95L16)
Profile high 95 mm / low 52 mm - contact 8.2 KO with max. speed detection speed 12 m/min - black colour
Conductive sensitive active edge with 8.2 KO contact
Sensitive safety edges are used to eliminate the risk of crushing or
of shearing due to sliding doors, mobile bulkheads, electric gates etc. answering
to the need to fall within the impact curves foreseen by EN12453. They are the same
composed of a "C" shaped aluminum support profile and a "PVC" profile into which it is inserted
the safety sensor, made up of two conductive plates which in the event of crushing
of the profile come into contact. The increased size of the rubber profile and the insert
in extruded conductive rubber used allow rapid response times, in the direction of
compliance with current regulations.
24 month warranty
