Description

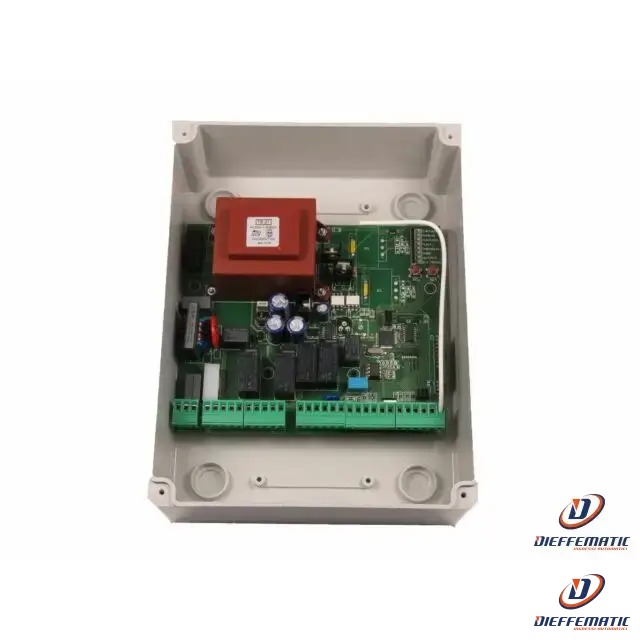

Electronic control unit for gates
Mod. LRX 2212 NEW SET/NT 433.92 MHz
SKU: 93830002
Electronic control unit for swing and sliding gates with built-in radio receiver. 12V electric lock output. Initial motor start-up, motor force adjustment, adjustable slowdown, two limit switch inputs for each of the two motors, management of the operating modes of the control buttons and numerous other functions available. Possibility of inserting optional modules for further functionality.
• Power supply: 230Vac 50/60 Hz 2000 W Max.
• Flashing light output: 230 Vac 50/60 Hz 500W Max.
• Motor output: 230Vac 750 W Max.
• Electric lock output: 12 Vdc 15 W Max.
• Photocell power supply: 24 Vdc 5 W Max.
• Indicator light output: 24 Vdc 4 W Max.
• Control inputs, safety devices and limit switches in BT: 24Vdc
• Quantity of radio controls that can be stored: 120 Max.
• Box dimensions: 240x185x110 mm.
24 month warranty
