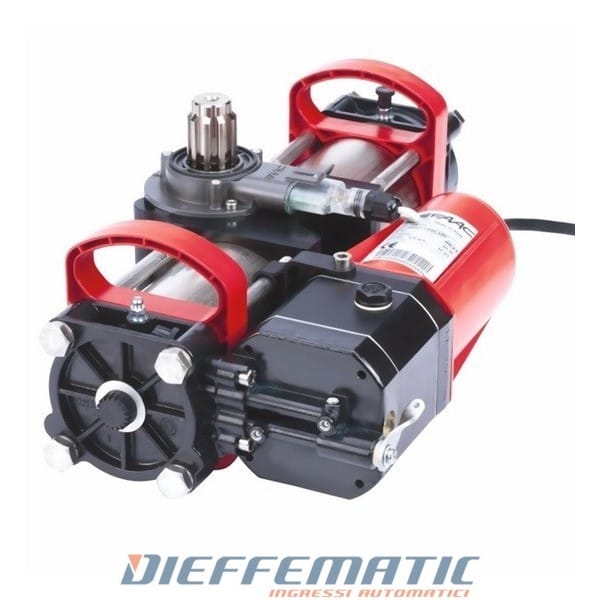

S800h Sbw 180° Underground 24v Actuator For Swing Gates Faac 108715 Automation

Save €38,14

Model: eb-371320054839
Warranty: 24 months
Supplier: Faac
Price:
€724,66 €762,80

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 2-4 business days

Description

24V UNDERGROUND HYDRAULIC ACTUATOR S800H SBW 180° (WHILE STANDING OUT)

For max door width 4 m and max weight 800 Kg

Attuatore 24v Interrato S800h Sbw 180° Per Ante Battente

Mod. 108715

- Continuous frequency of use
- Magnetic encoding with integrated 2easy BUS (non-polarized two-cable connection).
- Integrated positive stops, possibility of avoiding the installation of mechanical stops on the ground both during opening and closing. FAAC patent
- HYbrid technology.
- Service release device
- Integrated handles for easy handling and installation. FAAC patent
- SBW version actuators for use in areas subject to strong winds.

SAFEzone system: S800H + E024S or E124
GREENTEch system: S800H + E124

Model: S800H SBW 180°
Mains supply voltage: 230V~ 50 Hz
Electric motor: With 24V brushes
Max power: 60W
Max angular speed: 5.5°/s (with E024S) - 8.2°/s (with E124)
Operating ambient temperature: -20°C ÷ +55°C
Degree of protection: IP67
Weight: 13.2 kg
Type of oil: FAAC HP OIL
Dimensions (WxDxH): Actuator 380 X 220


24 month warranty
