Description

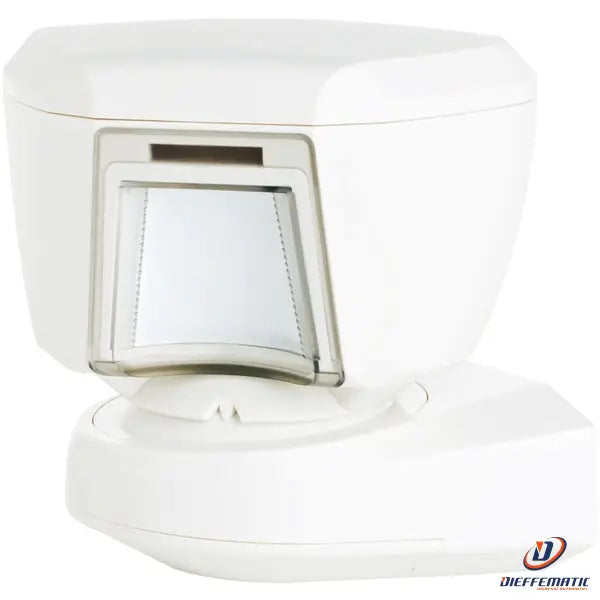

8 PIR outdoor detector
Model BMD-707
SKU: BMD-707
• Power supply: 8-16 Vdc
• Low voltage detection: when the supply voltage drops below 7.5 VDC
• Delay in masking detection: 120 seconds
• Input for remote activation of the LED (TST)
• White light immunity: over 25000 lux
• COMPLIANCE WITH EN 50130-4, EN 60950, EN 50130-5 environmental class IV. IP 55.
• US patents: 7250605, 6818881, 5693943. Other patents pending
• Range 12x12 m, 90° opening with anti-scratch protection
• Microprocessor controlled temperature compensation
• Mirror optical system with elliptical lens composed of 8 independent PIRs in Quad configuration
• Protection from white light above 25000 lux
• Pet immune 18 kg
• Mounting height from 1.5m to 3m on a flat surface
• Horizontal adjustment from -45° to +45° and vertical adjustment from 0° to -10°
• Battery life 3 years, type 2xCR17450
• Operating temperature -35° C to 60° C, 95% humidity (IP54)
• White color
• Dimensions mm:166x147x124
24 month warranty
