Description

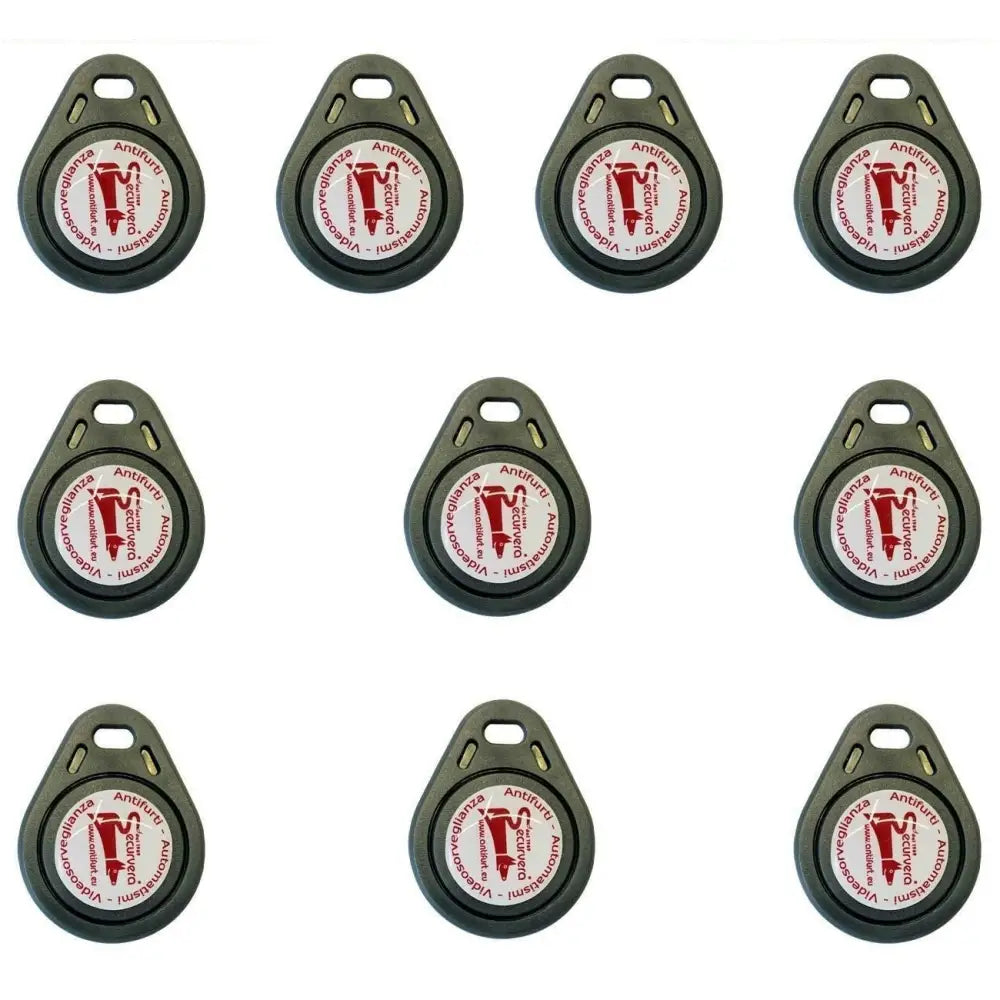

Proximity Transponder 10 High Security Keys TAG Unique Securvera Code Radio Frequency 125 KHz with Key Ring Hole Dimensions L40XL32XS6 mm Weight 5 g - SV-RKMXCPTCSE
Mod. SV-RKMXCPTCSE
SKU: SV-RKMXCPTCSE
SV-RKM High Security Proximity Electronic Keys; Ten Transponders or TAGs with a hole for attaching to the key ring. EM-4100 Frequency 125 KHz. Securvera unique magnetic code. When brought close to the reader, the coil that powers the circuit is energized which returns 2 codes, one basic Securvera and one Rollin Code. The processor, after recognizing them, activates the control relay. Characteristics of the computer where it is to be used: Learns 400 SV-RKM proximity keys Securvera high security code. With the Learning function activated; the key is brought closer to the SV-LPD inserter; the LED turns on which confirms recognition of the new key. Three negative OC 100 mA outputs for zone partitioning, or microrelay activation. Negative output for false key. INB Input +/- control unit status signalling. Sleep absorption 3 mA. Power supply 12/24 Vacdc. Free exchange relay 2 A at 24 V. Key dimensions L40XL32XS6 mm. Weight 5 g. Compliance with CEI 79/2-3 safety standards. CEI EN 50130-4 Directives CE marking directive 99/5/CE. Product assembled and selected in the Securvera Roma factory. Guaranteed by law against defects and manufacturing defects
LIST OF COMPONENT(S) ELECTRONIC KEY KIT USEFUL FOR ACTIVATING ALARM SYSTEMS OR OPENING DOORS AND GATES:
10 SV-RKM Proximity Key TAG Securvera Codes Fr. 125 KHz We do not recommend the use of non-original keys Enter Lock
01 SV-GAR 24 Month, Lifetime Warranty Certificate Against Factory Defects: Installation by Qualified Personnel DM37/2008
01 SV-IST Detailed Assembly Instructions; Must Be Respected: Fixings, Special Connections (PDF Manual)
Securvera Registered Trademark 663069: Automated Entrance Control Sensors Alarm Wire and Fire Radio
Instructions or Installation Manual: You will find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Proximity Key Activation Intervention Switching Off Alarm System
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal False Key Control Sabotage Inhibition Circuit
Country of origin and Manufacture: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility with other brands: Alarm systems any brand and type of security door openings
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Article Code Model Type: SV-RKMXCPTCSE Proximity Key for Door Opening Alarm Systems
