Description

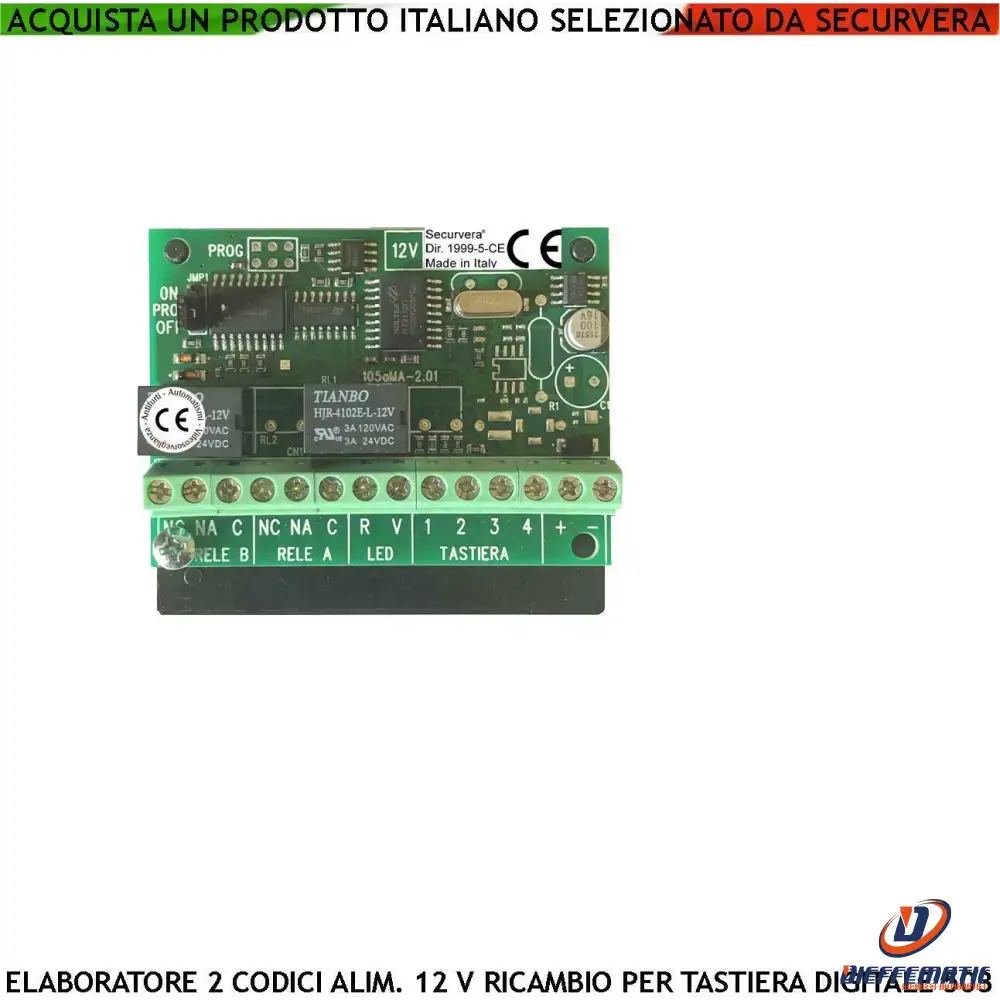

Replacement Board Processor for SL-TKB Keyboard Internal Mounting 2 Multifunctional Red Green LEDs 12 V Power Supply 2 Codes 2 Free Timed or Bistable Relays - SL-KBCTDERDVB
Mod. SL-KBCTDERDVB
SKU: SL-KBCTDERDVB
SL-KBC Replacement computer of the SL-KBS Kit decodes the DTMF codes sent by the SL-TKB type remote keypads. Connection to the keyboard 4 wires 2 power supply 2 data wires USB type. Functions recognizes two preset and replaceable personal codes from 1 to six digits, and activates the corresponding relay. The relays can be programmed: impulsively from 0 to 99 seconds, or permanently. The computer can support four keyboards at a maximum distance of 200 meters. Penalty time for tampering from 0 to 99 seconds. Power supply 12 V. Absorption 10 mA. excluding relay. 2 C.NC.NO Free Switch Relays from 1 A to 24 V. Processor dimensions L72XH53XS18 mm. Weight 47 g. Supplied with fixing base. Useful for the Secure access command in the absence of keys. Used for the control of gates or automatic vault doors. Compatible with all burglar alarm and fire alarm control units, automation systems and access control devices, elevators and other access or security controls. Assembled product selected in the Securvera Roma factory. Guaranteed by law for 24 months against defects and manufacturing defects. It complies with European use and directives: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08 -2002), EN 60730-1: 2003 CEE89/336 and 93/686 DL 04/12/1992 n. 47. Radio Equipment 2014/53/EU. Electromagnetic Compatibility 2014/30/EU
LIST OF COMPONENTS/OR KITS OF THE ELECTRONIC KEYBOARD USEFUL FOR OPENING OR CONTROLING DOORS AND GATES:
01 SL-KBC Computer for SL-TKB Keyboard Power supply 24 Vdc. Manages 2 Security Codes. Activates 2 Exchange Relays 3 A 24 V
01 SV-GAR 24 Month, Lifetime Warranty Certificate Against Factory Defects: Installation by Qualified Personnel DM37/2008
01 SV-IST Detailed Assembly Instructions; Must Be Respected: Fixings, Special Connections (PDF Manual)
Securvera Registered Trademark 663069: Automated Entrance Control Sensors Alarm Wire and Fire Radio
Instructions or Installation Manual: You will find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Electronic Key Activation Intervention Switching Off Alarm System
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal False Key Control Sabotage Inhibition Circuit
Country of origin and Manufacturing: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility with other brands: Alarm systems any brand and type of security door openings
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Article Code Model Type: SL-KBCTDERDVB Processor 2 R/V LED Relays for 503 Module Keyboard
CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL
24 month warranty
