Pair of Universal Photocells for Gates Nice Fe Compatible with Garage 24V

Save €0,82

Model: eb-223542871460
Warranty: 24 months
Supplier: DIEFFEMATIC
Price:
€15,50 €16,32

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 2-4 business days

Description

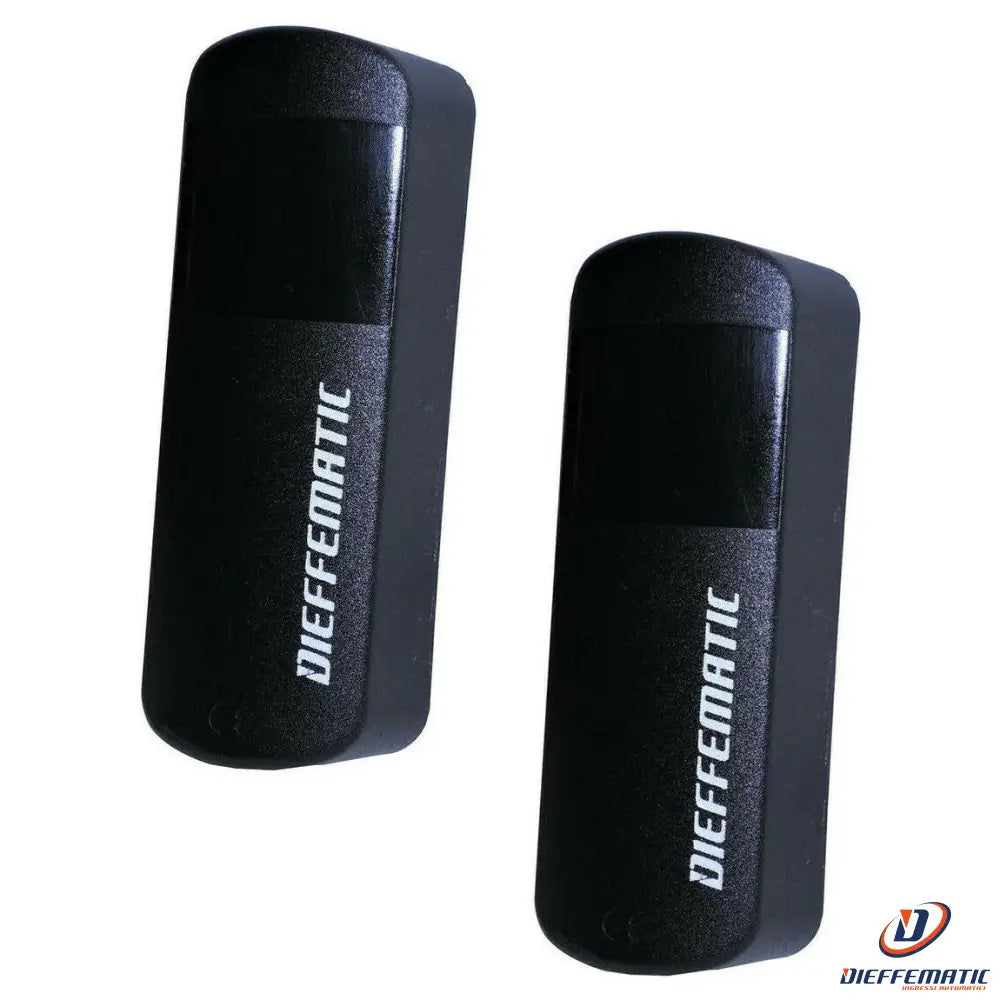

 Pair of Photocells

from WALL

Universal

Professional

- Power supply 12/35 V ac-dc

- Crossed 24 Vac synchronism

- Built-in sun filter

- SNOW function, activated via jumper

Mod.FO-MATIC

Outdoor photocell, refined and coordinated design, in infrared filter-transparent material.

The photocell creates a single infrared beam barrier with digital coding diversified on two possible channels (Channel A or Channel B).

Interruption of the infrared beam activates a relay device that switches a contact from C/NC to C/NO or vice versa.

The photocell can be used indifferently as an accessory device for gate or sliding door automation systems

or as an anti-theft sensor to intercept the presence of unauthorized people and generate the relevant alarm.

Robust: polycarbonate shell

MAX RANGE 15 METERS

DIMENSION105X36X20 MM

Alignment with proportional LED for easy and safe installation

CLICK ON THE LINK FOR THE INSTRUCTION MANUAL:

MANUFACTURER'S INSTRUCTION MANUAL

CHARACTERISTICS:
Crystal lens, 15 m range
Synchronized, range 15 m
Absorption: RX (12V,5cc) 30mA
Absorption: TX (12.5Vcc) 35Ma
Absorption: RX (24Vca) 70mA
Absorption: TX (24Vca) 80mA
Emission band 950nm
Protection degree of the container IP44
C/NO/NC contacts 24V 1A (resistive, non-inductive)
Operating temperature -20°C ÷ +55°C

24 month warranty
