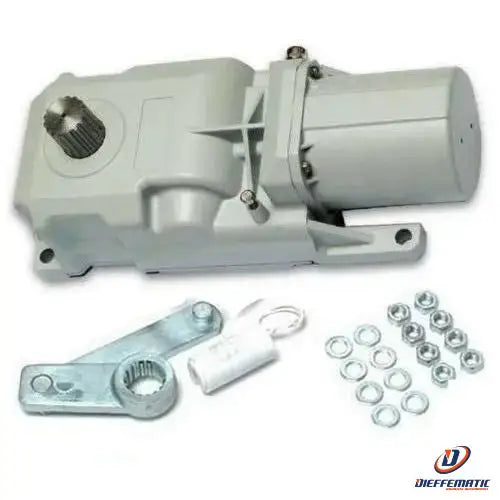

UNDERGROUND OPERATOR FOR SWING GATES
Mod. Roller
SKU: 6170077
Gate leaves up to 3,5 metres and a maximum of 500 kg per leaf
Patented release with lever and access using a custom key
Three-stage mechanical reduction with steel worm screw and sintered slow-shaft gear
Slowdowns during opening and closing 2 different foundation box models
180° opening kit
Optional mechanical stops for gate leaf opening and closing.
G-WAY SYSTEM: with Brain 19 control board
G-DEC SYSTEM: with Brain 19 control board
PRO-CODER Optional safety accessory (with Brain 19 control board)
Polyester coating suitable for installation in saline environments
Version: Irreversible
Voltage: 230V
Max. gate leaf: 3,5 m.
Intended use: Residential
TECHNICAL DATA:
Power supply (V): 230
Electric motor (V): 230
Rated power (W): 380
Current (A): 1.7
Capacitor (µF): 12,5
Max. torque (Nm): 330
Angular speed (°/sec): 6
Gate opening time to 90° (sec.): 18 (110°/180°) - 10.5 (140°)
Duty cycle at 20°C: S3 - 30%
Operating temperature (°C): -20 +55
Protection rating: IP67
Weight (kg): 26,5
24-month warranty
