Description

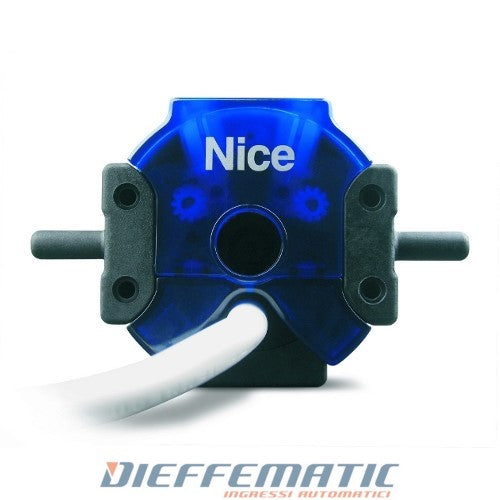

Tubular motor for box awnings with integrated control unit and receiver, electronic limit switch and encoder movement control. Size M Ø 45 mm
Torque: 8 Nm
Speed: 16 Rpm
Weight: 15kg
Mod. NM15000MT
Tubular motor ideal for cassette awnings with integrated receiver, electronic limit switch and encoder movement control.
Size M Ø 45 mm.
Simple programming
Remote programming of the limit switch in 3 modes: automatic, semi-automatic and manual.
Memorize up to 14 transmitters, without having to connect or access the engine; remote insertion of new transmitters once the first one has been memorised.
Acoustic and visual signals to guide the programming phases.
Programming the transmitter in 2 modes: Mode I (standard), Mode II (step-by-step with a single button).
Self-learning of the limit switch positions and the effort on the awning.
Possibility of programming a further limit switch at an intermediate height.
Comfortable
Adjustment of the limit switches from the radio control or from TTP and TTI programmers, easy and convenient, without opening the box.
Simple connection
Possibility of connecting a normal button directly to the motor for step-by-step control.
Flight sensor inputs; each sensor can control up to 5 motors or external control units connected in parallel.
5 Wind-Sun levels adjustable directly from the transmitter or from the TTP and TTI programmers.
Exclusive functions
RDC: torque reduction system, gently blocks the movement without stressing the curtain when it reaches the closed position; FRT: withdraws the fabric by a programmable size, after the awning has reached full opening, eliminating unsightly loosening; FTC: specific for the automation of awnings equipped with a locking mechanism with automatic hook such as shed awnings or winter gardens.
Precise and reliable
Encoder: millimetric precision and maintenance of the set values over time, effort on the awning always optimal and constant.
Safe
Stopping the roller shutter with blocking of movement and repetition of the maneuver in the event of obstacles, inserted bolts or in the presence of ice.
USE:
Cassette awnings
Wintergarden
FUNCTIONALITY:
Electronic limit switch with encoder
Semi-automatic limit switch programming
Obstacle detection
RDC function - Torque reduction during closing
FRT function - Awning fabric tensioning
FTC function - Automatic coupling system
Intermediate quota
NRC (Nice Radio Connection) technology
TTBus technology
24 month warranty
