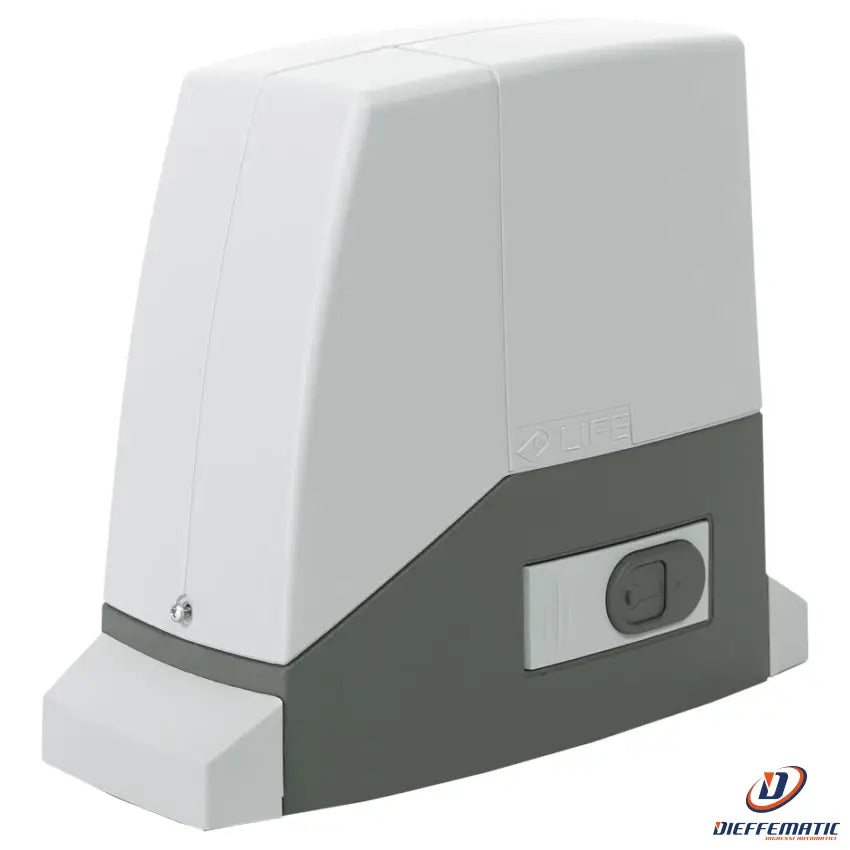

24V ELECTROMECHANICAL IRREVERSIBLE GEAR MOTOR WITH 300KG CONTROL UNIT - INTEGRATED RADIO MAGNETIC LIMIT SWITCH
Mod. AC3RM 24DL
SKU: 1MS0590001
Irreversible electromechanical gearmotor for sliding gates.
Aluminum structure, light and resistant.
Outer shell designed to protect against impacts.
Motor body coated with structured polyester paints for exterior use.
Model equipped with encoder, magnetic limit switch and control unit (RG1R 24 DL).
Acer is a high quality motor for sliding gates and is designed to last a long time. Automation of particular robustness, supported by the action of the encoder that allows its use in conditions of high safety during the operating phases; furthermore, the entire range is developed with the innovative Digital Life card.
Max door weight (Kg): 300
Motor power supply (V): 24V dc
Power consumption (W): 150
Thrust (N): 300
Lubrication (Type): Grease
Thermoprotection (°C): -
Operating temperature (°C Min/Max.): - 20 +70
Degree of protection (IP): 55
Speed (m/min): 11
Work Intermittent (%): 80
Pinion height - h (mm): 95
24 month warranty
