Description

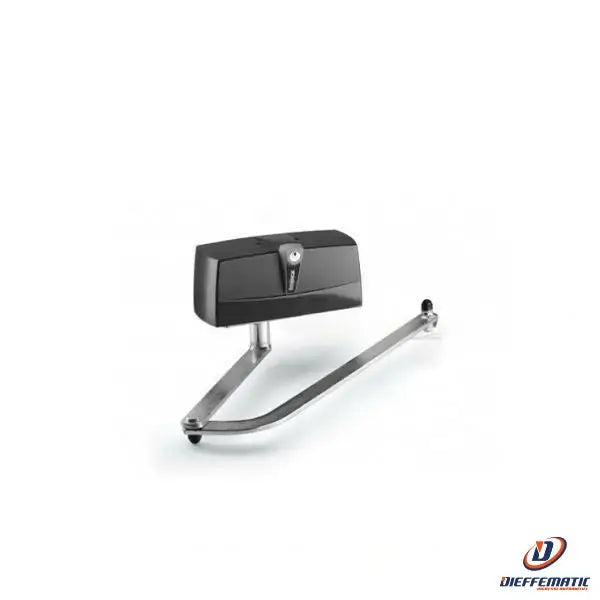

Engine for automation of gates with flaps articulated arm up to 3.0 m
Openings for doors doors 230 vac 24 vdc intensive use
Articulated arm
Personalized unlock key
Up to 3.0m
Arm not included
DESCRIPTION
Irreversible motorhid suitable for gates
mounted on large columns,
Available in 230 Vac and 24 VDC versions.
Electromechanical opening of the opening e
built -in closure, equipped with a robust arm
Snodate antichemento in galvanized steel.
Irreversible electromechanical motorhotor
230 vac also available in the version
PR.45el for large doors
• Irreversible motorhid 24 VDC for
intensive use
• Anti -crushed system with detection
amperometric
• Possibility of operating through batteries
Technical data PR.45E PR.45el PR.45E24
Code 9590684 9590685 9590686
Networking 230 Vac (50-60Hz) 230 Vac (50-60Hz) 230 Vac (50-60Hz)
Motor power 230 Vac 230 Vac 24 VDC
Maximum current absorbed 1.75 to 1.45 to 9 a
Pair 325 Nm 300 Nm 320 Nm
Opening time 13 "20" 9 "
Work cycle 30% 30% Intensive use
IP44 IP44 IP44 protection index
Operating temperature -20 ° C /+50 ° C -20 ° C /+50 ° C -20 ° C /+50 ° C
Length Max Anta 3m 4 m 3 m
Weight 13 kg 13 kg 13 kg
N. Pieces for Pallet 68 68 68
N. kit for pallet 12 - 12
Mod. PR.45E
24 months warranty
