Description

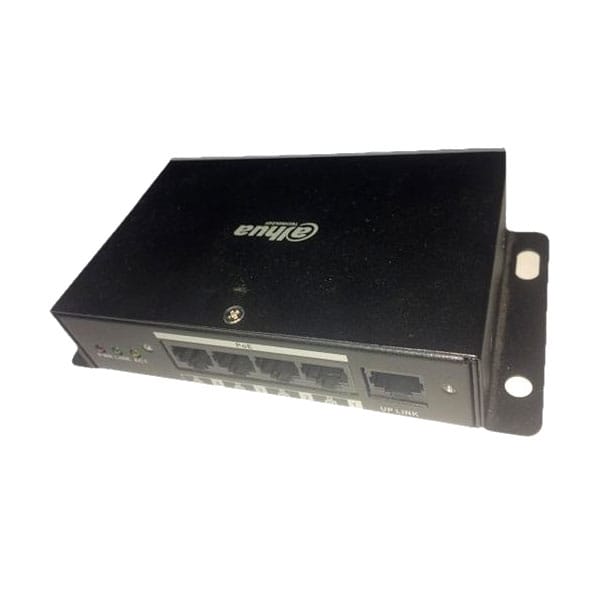

- 4 channel mobile switch with aviation port for power supply
- 4 PoE RJ45 10/100M (self-adaptive) drop-down ports to connect IP cameras
- 1 RJ45 10/100M port (self-adaptive, with Auto MDI/MDIX support) uplink (Uplink) to connect the switch to the BD-1577 mobile NVR and aggregate 4 additional channels
- Store & Forward referral mode
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af (PoE)
- PoE consumption: 15.4W (ports 1 to 4), 48W in total
- The switch must be powered by the BD-1577 mobile NVR through the 4-pin aviation port provided in the switch
- Power: Aviation port for power, >60W
- Without fan, natural heat dissipation
- Operating height of up to 3,000 meters
- Operating temperature of -30°C ~ +65°C
- Relative humidity: 0%~95% (non-condensing)
- Dimensions: 159 x 100 x 30 mm
- Weight: 1.5kg
Mod. MJHJ4P
24 month warranty
