Description
MINGARDI
Q8
Rod actuator for:
projecting windows, domes, sunshades, louvered windows
STROKE 300 MM
Professional
Protection degree of electrical devices: IP 55 / Protection degree electrical devices: IP 55
Closing-opening limit switch: Microswitch / Limit switch closing-opening: Microswitch
Colour: Anodised Silver (A) / Colour: Anodised Silver (A)
Operating temperature: -10°C +40C° / Operating temperature: -10°C +40C°
CLICK ON THE LINK FOR THE BROCHURE:
MANUFACTURER'S INSTRUCTION MANUAL

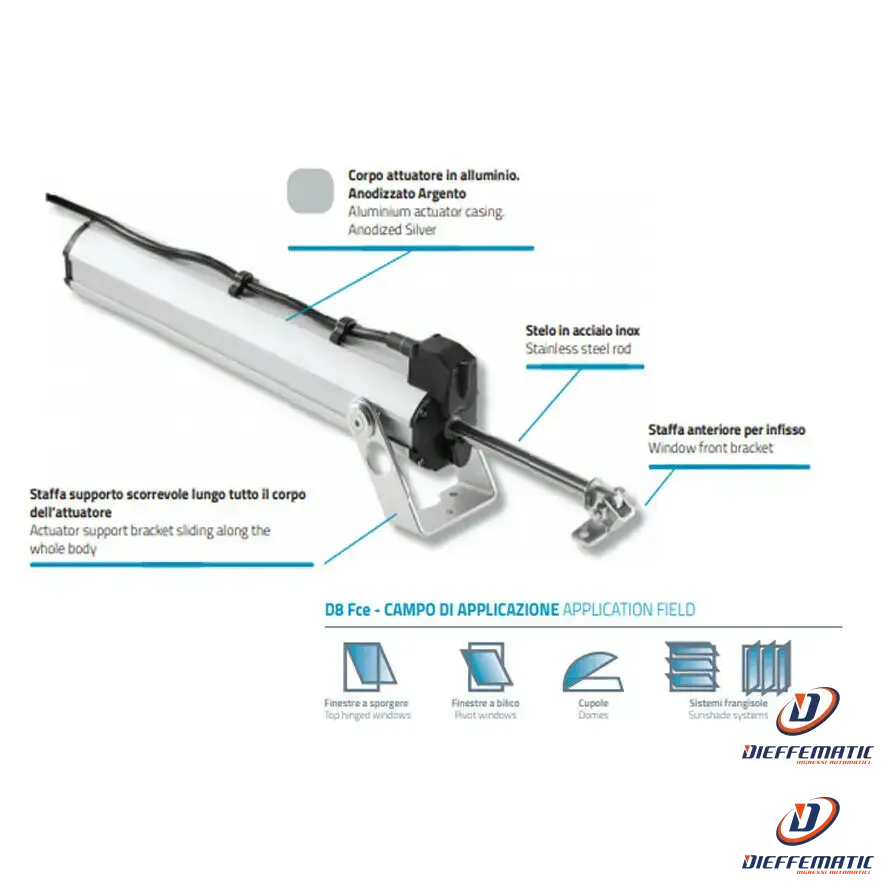

MINGARDI linear electric actuator with rigid rod movement with high resistance to peak loads.
Operation with 230V~ 50 Hz power supply voltage.
Complies with Directives 2006/95 LVD - 2004/108 EMC.
Equipped with limit microswitches and relay for parallel connection.
Built-in thermal protection.
Color available: silver anodized.
Complete with fixing accessories.
PRODUCT CODE: 2700293
D8 200 mm Silver 500 N 175 W IP 55 approx. 19 mm/s 230V~ / 50Hz
OPTIONAL accessories:
2700102
Front pin for sunshade versions
2700124
Silver engine support bracket
2700064
Front bracket for frame
2700107
Front bracket for frame + accessories for actuator bracket only
24 month warranty
