Description
Complete Kit for Gate Automation
with TWO HINGED DOORS
Professional
With mechanical opening and closing limit switches
**Use for leaves up to 2.50 meters and 200kg in weight**
Mod. BHE 400mm 230v
Electromechanical linear actuator for condominium use,
**Use for leaves up to 2.50 meters and 200kg in weight**
Mod. BHE 400mm 230v
Electromechanical linear actuator for condominium use,
structure entirely in metal, stem in stainless steel.
Once correctly installed, BHE automations no longer need to be looked after,
since their maintenance is practically nil,
Once correctly installed, BHE automations no longer need to be looked after,
since their maintenance is practically nil,
the installation does not require any modification to the existing gate!
High performance electric motor.
The actuator is built for leaves that do not exceed 200 kg in weight and 2.50 meters in length,
High performance electric motor.
The actuator is built for leaves that do not exceed 200 kg in weight and 2.50 meters in length,
aluminum body and the heart of the bronze gears guarantee long life.
The actuator keeps the lock in closing and opening without the need for an electric lock for doors,
The actuator keeps the lock in closing and opening without the need for an electric lock for doors,
convenient release with triangular key located on the motor unit.
Control unit with built-in receiver for the control of ½ leaves.
Electronic clutch with comfortable and fast stroke adjustment,
Control unit with built-in receiver for the control of ½ leaves.
Electronic clutch with comfortable and fast stroke adjustment,
possibility of adjusting the second leaf delay.
Slowdowns in opening and closing.
Suitable for symmetrical and asymmetrical gates
Slowdowns in opening and closing.
Suitable for symmetrical and asymmetrical gates
thanks to the possibility of independently managing the travel of the doors.

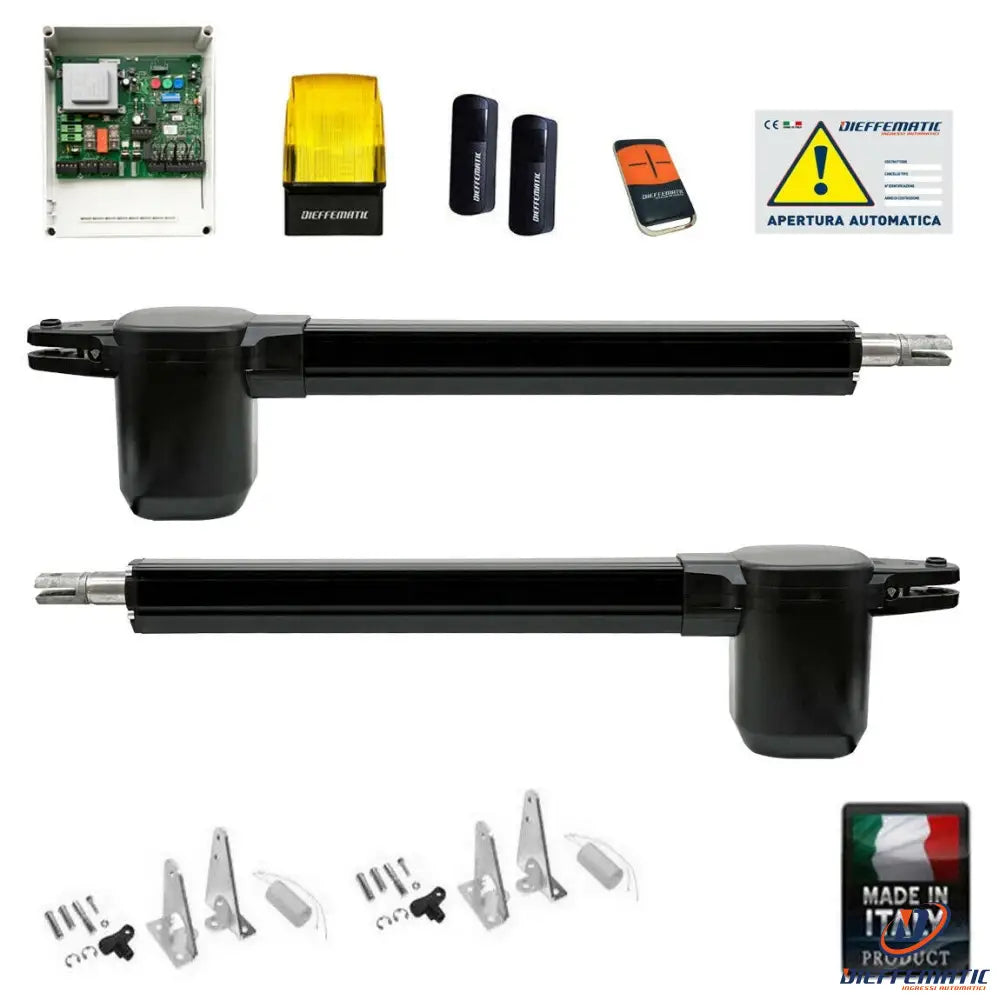

COMPOSITION OF THE KIT:
n° 2 Electromechanical linear actuator for condominium use, for external uses
Emergency release with key. No need for electric lock.
Engine rpm 1,400. Power 200 W. Thrust 1500 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 6.5 kg
n° 1 control unit with watertight box, with trimmer for regulating engine force and slowdown,
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
COMPOSITION OF THE KIT:
n° 2 Electromechanical linear actuator for condominium use, for external uses
Emergency release with key. No need for electric lock.
Engine rpm 1,400. Power 200 W. Thrust 1500 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 6.5 kg
n° 1 control unit with watertight box, with trimmer for regulating engine force and slowdown,
built-in obstacle detector, slow opening and closing, 4 operating logics: step-by-step,
semi-automatic 1 and 2, condominium automatic. Pedestrian function only by remote control, Protections against overvoltages,
Input for photocells and safety edges, electric lock management, reversal stroke,
Adjustable closing/opening door lag, adjustment of re-closing time.
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated in the control unit, range 40 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 pair of wall photocells
n° 1 flashing light 230v
n° 1 signaling sign
n° 1 Installation accessories, bolted/welded fixing brackets with bracket covers
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated in the control unit, range 40 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 pair of wall photocells
n° 1 flashing light 230v
n° 1 signaling sign
n° 1 Installation accessories, bolted/welded fixing brackets with bracket covers
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
