Kit Dfm 2 Hydraulic Motor Swing Doors Fits A Faac400 Cbc Sb Ph1 270

Save €32,10

Model: eb-254285626003
Warranty: 24 months
Supplier: DIEFFEMATIC
Price:
€610,00 €642,10

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 2-4 business days

Description

Complete kit for double swing gate automation

with HYDRAULIC motors

IRREVERSIBLE (BLOCKED)


Professional

**Use for leaves up to 2.00 m**

Mod. PH1 230v

Refined mechanics: operation via oil with internal lubrication of all mechanical components, guarantee of performance and reliability.

Safe: thanks to the anti-crushing safety with the maximum thrust calibration bypass valves.

Ball joint for millimetric adjustment.

Convenient release with triangular key.

Extruded aluminum structure.

Control unit with built-in receiver for the control of ½ doors.

Electronic clutch with convenient and fast stroke adjustment, possibility of adjusting the second leaf delay.

Slowdowns in opening and closing.

Suitable for symmetrical and asymmetrical gates thanks to the possibility of independently managing the travel of the leaves.

CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:

MECHANICAL INSTALLATION MANUAL

ELECTRONIC INSTALLATION MANUAL

KIT COMPOSITION:

n° 2 Hydraulic operator for swing gates for residential use for leaves up to 2mt. No need for an electric lock. Engine rpm 1,400. Power 200 W. Adjustable thrust from 500 to 3000 N. Maximum opening angle 120°. Power supply 220 V. 50 Hz. Weight 6.3 kg

n° 1 control unit with watertight box, with motor force adjustment trimmer and obstacle detector, slowdown in opening and closing, 4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic. Pedestrian entrance, Courtesy light, Protection against overvoltages, Input for photocells and safety edges, Electric lock management, Reversal stroke, Adjustable closing/opening door phase shift.
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)

n° 1 Antenna incorporated into the control unit, range 20 meters (433.9 MHz)

n° 1 4-channel Rolling Code remote control

n° 1 Pair of wall-mounted photocells

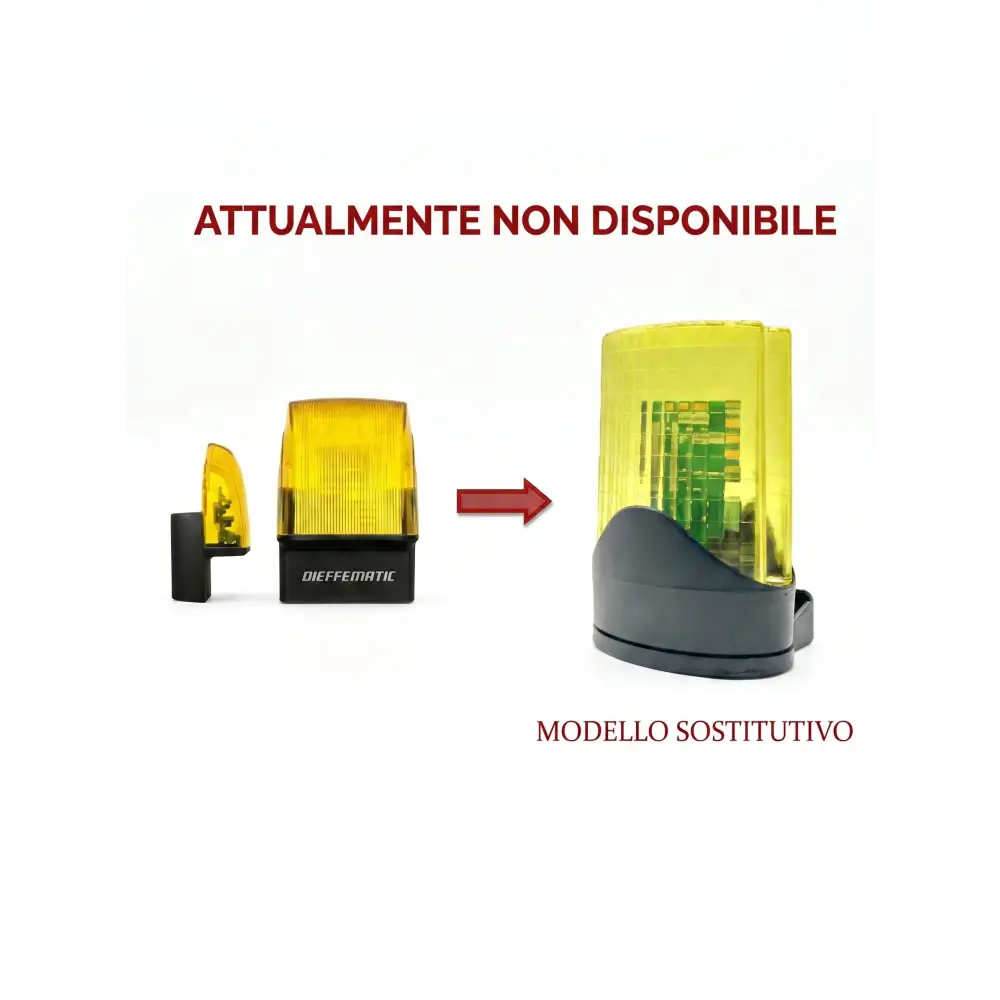

n° 1 230v flashing light

n° 1 Warning sign

n° 1 Installation accessories

n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN

24 month warranty
