Built-in Door Opener Keyboard Module 503 IP44 2 Red Green LEDs Kit 2 SV-KBC Computer Keyboards 24 Vdc Power Supply 2 Codes 2 Free Timed or Bistable Relays - SL-KBV2TAHDVA
Mod. SL-KBV2TAHDVA
SKU: SL-KBV2TAHDVA

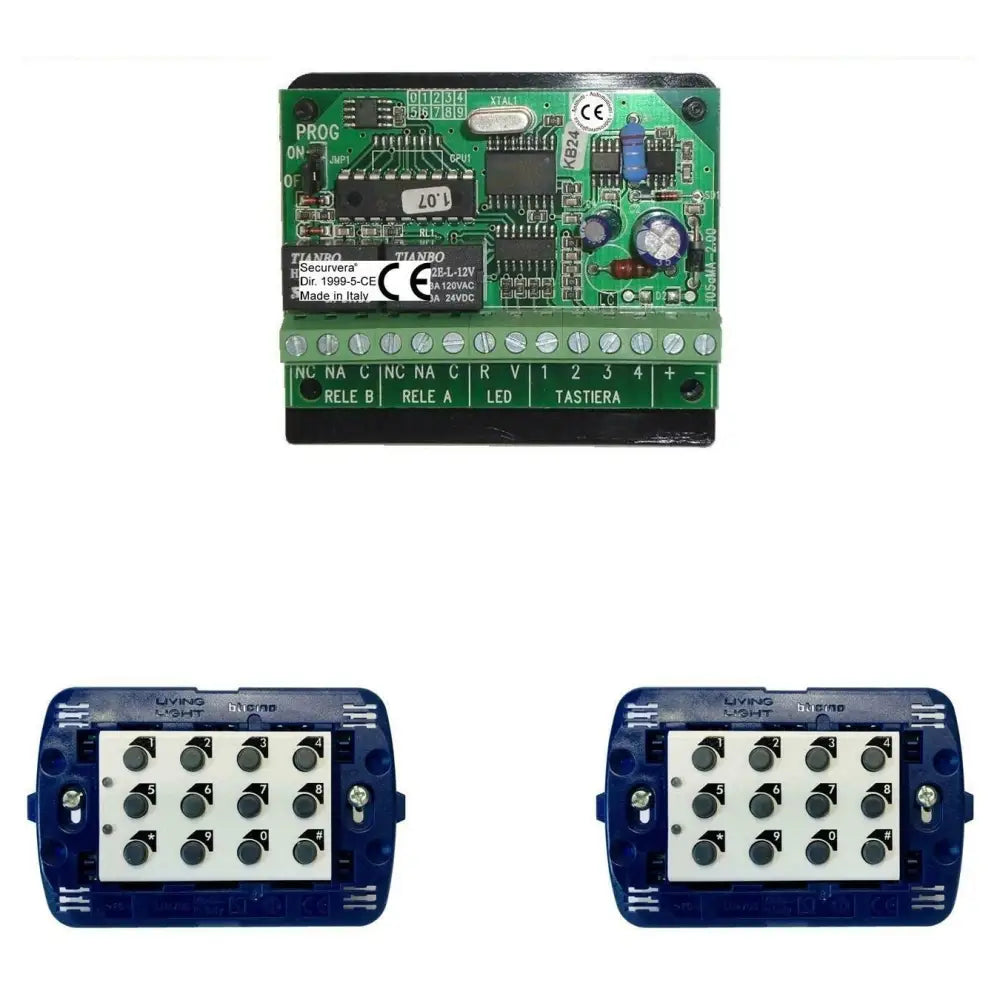

SL-KBV Kit of 2 Indoor Keypads, Living International model module 503. The keypad has two LEDs: green and red, the speed of the flashes determines the functions. 12 keys to type and confirm coding. Transmission of codes in DTMF. Overall dimensions of the three-module 503 keyboard. IP44 protection rating. Connection to the computer 4 wires 2 power supply 2 data wires USB type. SL-KCV computer that recognizes two preset personal codes from 1 to six digits, and activates the corresponding relay. The relays can be programmed: impulsively from 0 to 99 seconds, or permanently. The computer can support four keyboards at a maximum distance of 200 meters. Penalty time for tampering from 0 to 99 seconds. 24 Vdc power supply. Absorption 10 mA. excluding relay. 2 C.NC.NO Free Switch Relays from 1 A to 24 V. Processor dimensions L72XH53XS18 mm. Weight 47 g. Supplied with fixing base. Useful for the Secure access command in the absence of keys. Used for the control of gates or automatic vault doors. Compatible with all burglar alarm, fire prevention, automation and access control systems, elevators and other access or security controls. Product selected in the Securvera Roma factory. Guaranteed in accordance with the law All our products are built in compliance with the European Directives: R&TTE 99/05/EC CEE 89/336 + 92/31 +93/68 DL 04/12/1992 N 476 and subsequent amendments, continuously updated . Product assembled and selected in the Securvera Roma factory. Guaranteed by law against defects and manufacturing defects
LIST OF COMPONENTS ELECTRONIC KEYBOARD KIT USEFUL FOR OPENING OR CONTROLING DOORS, GATES AND AUTOMATIONS:
00 SL-KBV Indoor Digital Keyboard Kit on 503 Power Processor Module. 24 Vdc Manages 2 Security Codes Output 2 Relays
02 SL-TKB Indoor Digital Keyboard Module 503 For Power Processors. 12/24 Vdc Which Manage 2 Security Codes 2 Relays
01 SL-KCV Computer for SL-TKB Keyboard 24 Vdc power supply. Manages 2 Security Codes. Activates 2 Exchange Relays 3 A 24 V
01 SV-GAR 24 Month, Lifetime Warranty Certificate Against Factory Defects: Installation by Qualified Personnel DM37/2008
01 SV-IST Detailed Assembly Instructions; Must Be Respected: Fixings, Special Connections (PDF Manual)
Securvera Registered Trademark 663069: Automated Entrance Control Sensors Alarm Wire and Fire Radio
Instructions or Installation Manual: You can find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Electronic Key Activation Intervention Switching Off Alarm System
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal False Key Control Sabotage Inhibition Circuit
Country of origin and Manufacturing: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility with other brands: Alarm systems any brand and type of security door openings
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Article Code Model Type: SL-KBV2TAHDVA Internal Electronic Keyboard Module 503 2 R/V LEDs
