Description
Complete Kit for Automation of PH 270MM REVERSIBLE SWING LEAF Gate
with HYDRAULIC motor
REVERSIBLE PH MODEL
Professional
Mod. PH REVERSIBLE 270 MM 230v
Refined mechanics: operation via oil with internal lubrication of all mechanical components, guarantee of performance and reliability.
Safe: thanks to the anti-crushing safety with the bypass valves for calibrating the maximum thrust.
Ball joint for millimetric adjustment.
Convenient release with triangular key.
Extruded aluminum structure.
Control unit with built-in receiver for the control of ½ doors.
Electronic clutch with convenient and fast stroke adjustment, possibility of adjusting the second leaf delay.
Slowdowns on opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the possibility of independently managing the travel of the leaves.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT COMPOSITION:
n° 1 hydraulic operator for swing gates for residential use 270MM REVERSIBLE. No need for electric lock. Engine rpm 1,400. Power 200 W. Thrust adjustable from 500 to 3000 N. Maximum opening angle 120°. Power supply 220 V. 50 Hz. Weight 6.3 kg
n° 1 control unit with watertight box, with motor force adjustment trimmer and obstacle detector, slowdown on opening and closing, 4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic. Pedestrian entrance, Courtesy light, Protection against overvoltages, Input for photocells and safety edges, Electric lock management, Reversal stroke, Adjustable closing/opening door phase shift.
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated into the control unit, range 20 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 Pair of wall-mounted photocells

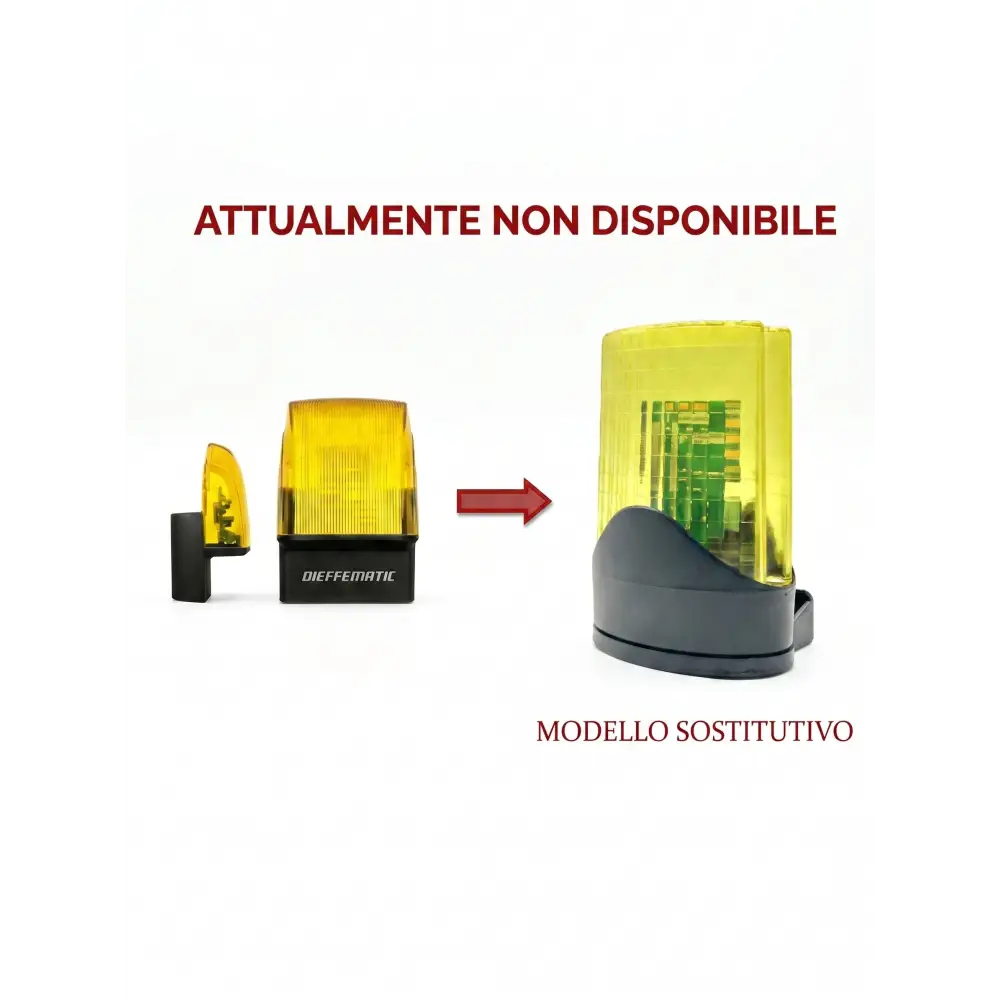

n° 1 230v flashing light
n° 1 Warning sign
n° 1 Installation accessories
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
