Garage Door Automation Unit Fm 434.42 Mhz Sommer Duo Vision 500 3005v007

Save €12,27

Model: eb-224131062529
Warranty: 24 months
Supplier: Sommer
Price:
€233,13 €245,40

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 10 working days

Description

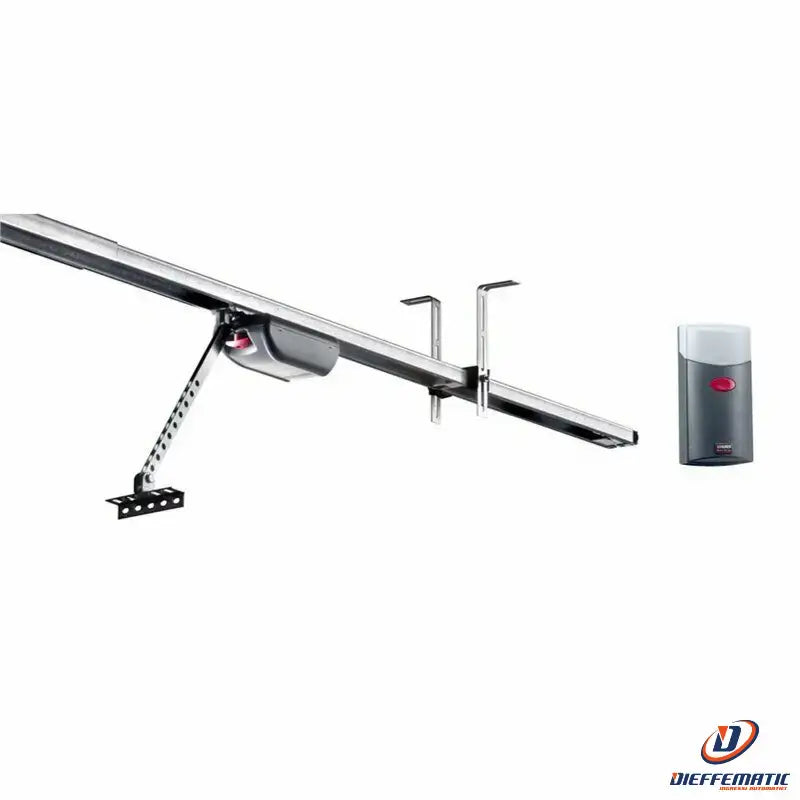

Garage door automation unit, FM 434.42 MHz

Duo vision 500 model

SKU: 3005V007

• Control unit housing with integrated radio receiver (FM 434.42 MHz Somloq Rollingcode, 112 memory locations) for ceiling or wall mounting
• Integrated internal button
• Courtesy light
• Mounting kit
• Radio control available separately
• To be used only together with guide kits #1890V000, #1891V000 and #1892V000 (to be ordered separately)

• Separate control unit housing with integrated internal button and lighting (ceiling or wall mounting)
• With the wall-mounted control unit housing, the lighting and internal button are located close to the exit door
• Thanks to the separate control unit housing, the electrical installation is simple: in fact, no additional ceiling sockets are necessary, but it is possible to use an on-site socket
• Protection against injuries thanks to electronic force measurement with DPS (Dynamisches Power System)
• Soft stroke regulated in the shape of a ramp without loss of force
• Low consumption thanks to the transformer (duo vision 650 and 800)
• Connector for photocell and TorMinal
• Universal power supply (variable from front or rear)

Nameduo vision 500
Article code3000V000
Tensile force500 No
Max. door width in mm:
Overhead door3500
Sectional door3500
Swing door-
Side sectional door3500*
Max. door height in mm:
Overhead door2600
Sectional door2350
Swing door-
Side sectional door2300
Folding door-
* with extensions for guides

24 month warranty
