Shipping
Shipping in 5-10 business days
Description
PoE camera security system kit
Model X5K+H3K(4K) POE NVR kit
SKU: 370700002
Connect up to 8-ch 4K IP Cameras; POE. Color night vision, 2 TB storage included. Supports ONVIF video formats; Includes 4 H3k 4K cameras.

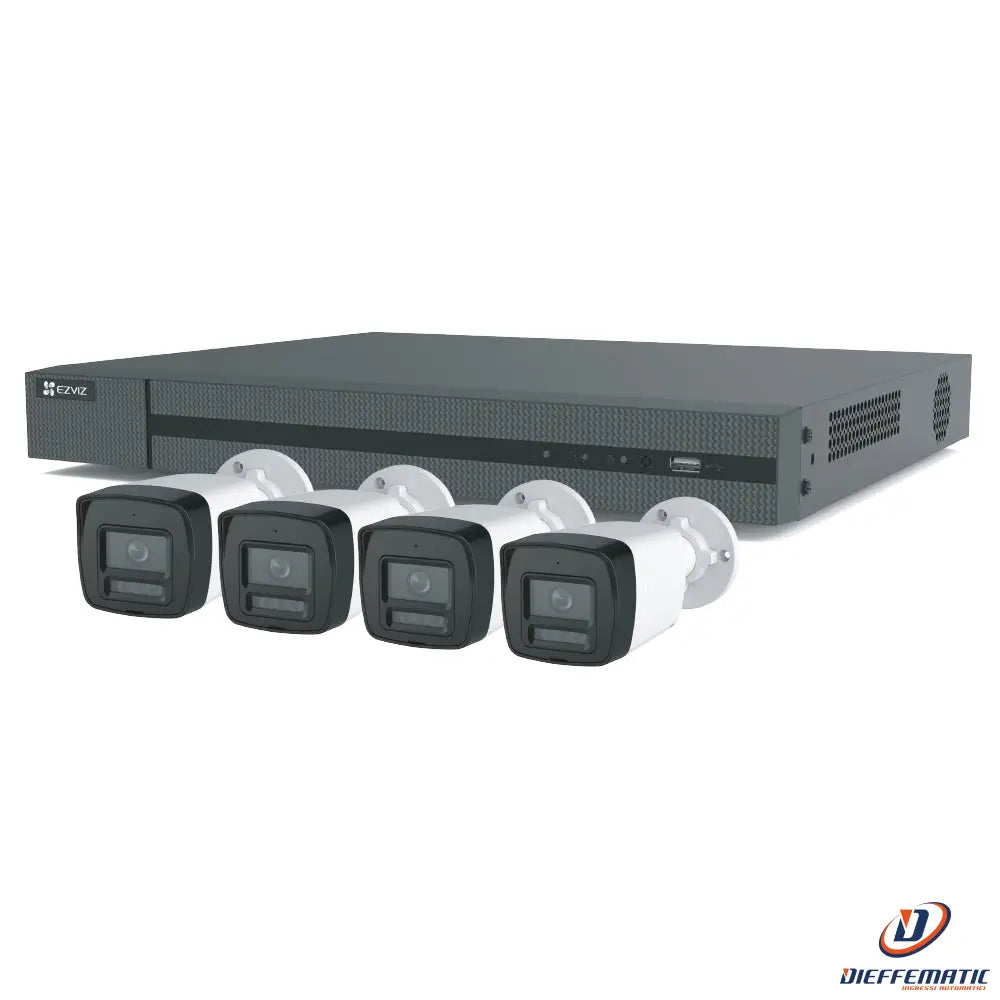

H3K 4K PoE video surveillance kit with X5K NVR and 2 TB HDD
Protect your home or business with a complete, reliable, easy-to-install system. The kit includes four 4K PoE cameras, an X5K NVR, and a 2 TB hard drive for continuous recording. With centralized management and subscription-free smart features, monitor multiple areas at once with clear video, intelligent detection, and real-time notifications.
Package contents
• H3K PoE 4K cameras x4
• X5K NVR x1
• 2 TB hard drive preinstalled x1
• 18-meter Ethernet cables x4
Key features
Plug-and-play installation with PoE power over a single cable
• 4K video with color night vision
• AI detection of people and vehicles, with customizable zones
• Active defense with siren and strobe lights
• Two-way audio for remote talking and listening
• H.265+ compression saves bandwidth and storage space
• Aluminum alloy housing, IP67 weather protection
• Local storage on the NVR and on MicroSD cards up to 512 GB per camera
H3K PoE 4K Cameras
Power over Ethernet: a single cable for data and power
• 4K resolution for sharp details and accurate identification
• Color night vision with built-in spotlights, up to 30 meters
• Intelligent detection of people and vehicles, with instant alerts
• Active defense: siren and strobe light to deter intruders
• Two-way audio: answer visitors or delivery drivers from your phone
• High-strength aluminum alloy housing, IP67 rated
• Supports MicroSD cards up to 512 GB for on-camera recording
X5K NVR
• Connect up to 8 cameras at resolutions up to 4K
• Multi-channel viewing for live feeds and playback
• HDMI and VGA outputs for connection to a monitor/TV
• Storage capacity up to 16 TB (2 TB HDD included)
• Smart Timeline and advanced video search to find events quickly
Simplified PoE installation and cabling
• One cable to connect and protect: network, data, and power over Ethernet
• Stable, uninterrupted power supply
• Low-cost installation and simplified maintenance
• Includes four 18-meter Ethernet cables for quick installation
Centralized NVR-based management
• Configure each camera flexibly and manage them from a single location
• Customize settings and save videos in one secure, centralized location
• Expand the system to support up to 8 compatible cameras
• Connect an additional screen for a local control center
Smart features and notifications
• AI detection of people and vehicles to reduce false alarms
• Customizable detection zones to focus on critical areas
• Real-time alerts in the app, with no subscription fees
• Smart playback: filter by time and event, and bookmark important moments
Local storage and uninterrupted recording
High-capacity NVR for long-term 24/7 recording
• Supports MicroSD cards up to 512 GB per camera for redundancy and backup
• No recurring costs: secure, scalable local storage
Video quality and H.265+ compression
• Smooth streaming and fast loading, even at high resolution
• Reduced storage use compared with traditional codecs
• Greater efficiency for extended recordings and fast review
Audio and active deterrence
• Talk remotely with visitors or couriers directly from the app
• Prerecorded voice messages played automatically when motion is detected
• Powerful siren and strobe lights to signal presence and deter intruders
Color night vision
• Built-in lighting for color vision even in complete darkness
• Range of up to 30 meters for monitoring large areas at night
Durability and reliability
• Metal housing designed for outdoor durability
• IP67 protection against rain, snow, and adverse weather conditions
• Stable operation for complete peace of mind, day and night
Ideal for
• Homes, shops, offices, warehouses, and parking lots
• Anyone looking for a complete system with no subscriptions
• Quick installations with centralized management and multi-camera control
Overview
• All-in-one kit with 4 4K PoE cameras, X5K NVR, and 2 TB HDD
• AI detection, real-time alerts, and smart search
• Large, scalable local storage with no subscription fees
• Robust IP67 construction and color night vision up to 30 meters
• Easy to use, expandable to 8 cameras, with maximum image clarity
Video and audio
IP video input: 8 channels
Incoming bandwidth: 80Mbps
Outgoing bandwidth: 80Mbps
HDMI output: 1 channel, 4K (4096 x 2160) / 30 Hz, 4K (3840 x 2160) / 30 Hz, 2K (2560x1440)/60 Hz, 1920x1080/60 Hz, 1600x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output: 1 channel, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280x720/60 Hz
Audio output: 1 channel, RCA (linear, 1 KΩ)
Two-way audio: 1 channel, RCA (2.0 Vp-p, 1 kΩ)
Decoding
Decoding format: H.265+, H.265, H.264+, H.264
Recording resolution: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF
Synchronous playback: 8 channels
Decoding capacity: 1 channel at 8 MP (30 fps) / 3 channels at 4 MP (30 fps) / 6 channels at 1080p (30 fps)
Stream type: Video, video and audio
Audio compression: G.711alaw / G.711alaw / G.722 / G.726
Network
Network protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Network interface: 1, 10/100 Mbps self-adaptive RJ-45 Ethernet interface
PoE
Interface: 8, 10/100 Mbps self-adaptive RJ-45 Ethernet interface
Power: ≤ 80 W
Standard: IEEE 802.3af/at
Auxiliary interface
SATA: 2 SATA interfaces (16 TB max total, up to 8 TB per drive, 2 TB included)
USB interface: 2 USB 2.0 ports
General information
Power supply: 48 VDC, 2.5 A (consumption ≤ 15 W without HDD and PoE disabled)
Operating conditions: -10 °C to 55 °C (14 °F to 131 °F) Humidity 10% to 90%
Dimensions (L x D x H): 385 x 315 x 52 mm (15.2 x 12.4 x 2.0 inches)
Weight: ≤ 2.6 kg (without HDD, 5.7 lb.)
Specifications
Model: CS-H3K-R100-6E8EKFL
Camera
Image sensor: 1/2.7" progressive scan CMOS sensor
Shutter speed: Adaptive shutter
Lens: 2.8 mm, 113° horizontal field of view, 62° vertical field of view, 134° diagonal field of view
Minimum illumination: 0.01 lux @(F2.0, AGC ON), 0 Lux with IR
Lens mount: M12
Day/night switching: Automatic IR-Cut filter switching
DNR: 3D DNR
WDR: TWD 120 dB
BLC: Supported
HLC: Supported
IR night vision distance: Up to 30 m/98 ft.
Video and audio
Max. resolution: 4K (3840 x 2160)
Frame rate: Max: 15 fps; Adaptive during network transmission
Video compression: H.265+ / H.265 / H.264+ / H.264
Video bit rate: Ultra HD; HD; Standard. Adaptive bit rate.
Audio compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio signal transmission rate: Adaptive
Network
Wired network: RJ45 x 1 (10M/100M adaptive Ethernet port)
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS,FTP, SMTP
Functions
Smart alarm: AI-based human shape detection AI-based vehicle shape detection
Custom alarm area: Supported
Two-way communication: Supported
General functions: Anti-flicker, dual stream, password protection, watermark
General information
Operating conditions: -30 °C to 60 °C (-22 °F to 140 °F) Humidity 95% or less (non-condensing)
IP rating: IP67
Material: Metal
Local storage: Supports microSD card (up to 512 GB)
Power supply: 12 VDC ± 25%, 0.66 A, max. Coaxial power 8 W, Ø 5.5 mm plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 9.5 W
Power consumption: Max. 9.5 W
Dimensions: 179 x 67.4 x 69.1 mm (7.1 x 2.7 x 2.7 inches)
Net weight: approx. 450 g (1.0 lb)
Package contents
Package contents: H3K PoE 4K camera x 4; X5K NVR; Drilling template x 4; Waterproof kit x 4; Screw kit x 5; Mouse; Power adapter; Power cable; HDMI cable; SATA Ethernet cable; Ethernet cable x 5; Regulatory information; Quick Start Guide
Certifications
Certifications: CE (EMC / LVD / RED / ROHS / ERP) / REACH / SVHC / WEEE / FCC (SDOC / ID) / UL / UKCA
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
INSTRUCTION MANUAL
TECHNICAL DATA SHEET
24-month warranty
