Description

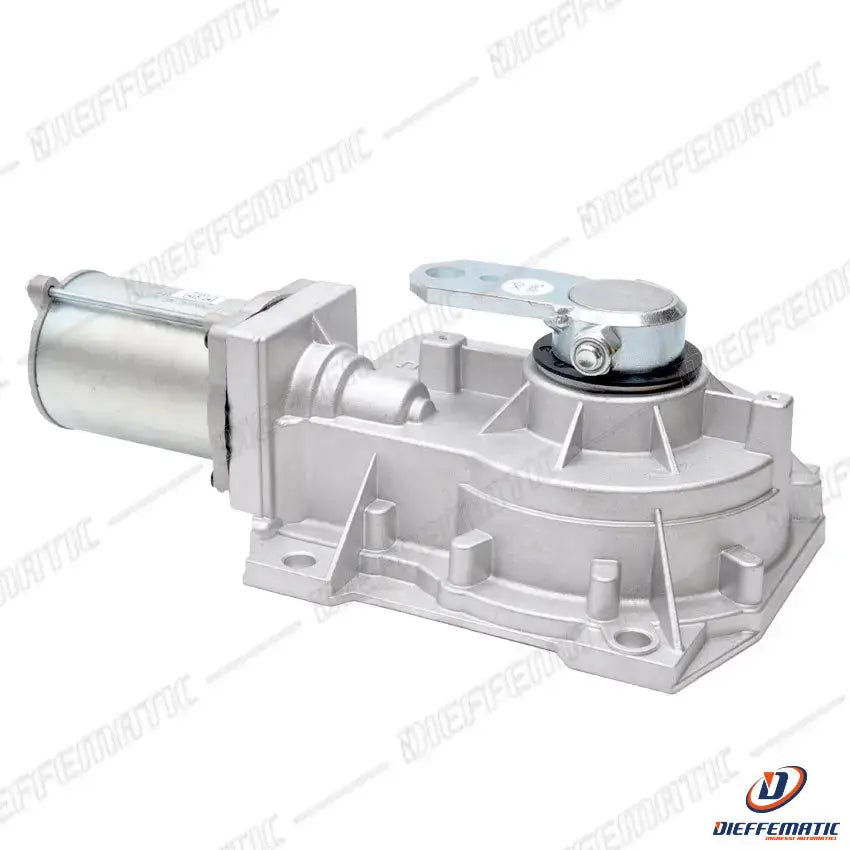

230 V underground electromechanical operator for swing gates up to 3.5 m in length
Mod. ELI AC A35 FAST
SKU: P930131 00002 (EX P930126 00002)
Super fast AC35 motors: Maximum comfort. Rapid opening to quickly free busy or dangerous roads to enter your property. Quick closing to secure the property from possible intrusions.
New secondary arm: faster and safer attachment to the primary shaft, more reliable installation!
Integrated mechanical stops: always present, both on opening and closing, they make the installation invisible thanks to the elimination of ground stops.
Motor voltage: 230V
Compatible control unit: RIGEL6, ALENA SW2
Max. width swing: 3.50 m
Length Max leaf without electric lock: 2 m
Max engine torque: 200 Nm
maximum opening cycles per hour: 40
Maximum angle: 120°
Speed: 2.50 Rpm
90° opening time: 11" (no slowdown)
Standard limit switch: NO
Optional limit switches: Magnetic
Mechanical stops: AP+CH
Unlocking: Lever or lever with personalized key
Impact reaction: Electronic clutch (with control panel)
Degree of protection: IP67
Environmental conditions: -20 ÷ 55 °C
RECOMMENDED ACCESSORIES
N733397 - BTCF 120 E: Foundation box with levers for ELI AC A, ELI BT A. Release not supplied
N733398 - BTCF 120 E INOX: Stainless steel foundation box with levers for ELI AC A, ELI BT A. Release not supplied
N733392 - SCC: Release for ELI AC A, ELI BT A and SUB BT with lever key.
N733502 - SCP: Unlock for ELI AC A, ELI BT A and SUB BT with personalized key.
N733304 - E180: Accessory for opening up to 180° for the operator ELI AC A40, ELI BT A40
N733951 - FCE: Magnetic limit switches for BT and AC models.
P111782 - COMPACTA A20-180: Pair of photocells adjustable 180° horizontally. Range 20 metres. Power supply 12 - 33Vac / 15 - 35Vdc.
R400009 - COMPACTA KIT - PHP: Complete kit with a pair of 522mm height aluminum columns for photocells and a pair of COMPACTA 180° adjustable photocells, 20 meter range, 12 - 33Vac / 15 - 35Vdc power supply.
D114094 00002 - RADIUS LED AC A R0: Flashing light without integrated antenna for motors powered by 230 V.
D114093 00002 - RADIUS LED AC A R1: Flashing light with integrated antenna for engines powered by 230 V.
