Shipping
shipping in 2-4 business days
Description

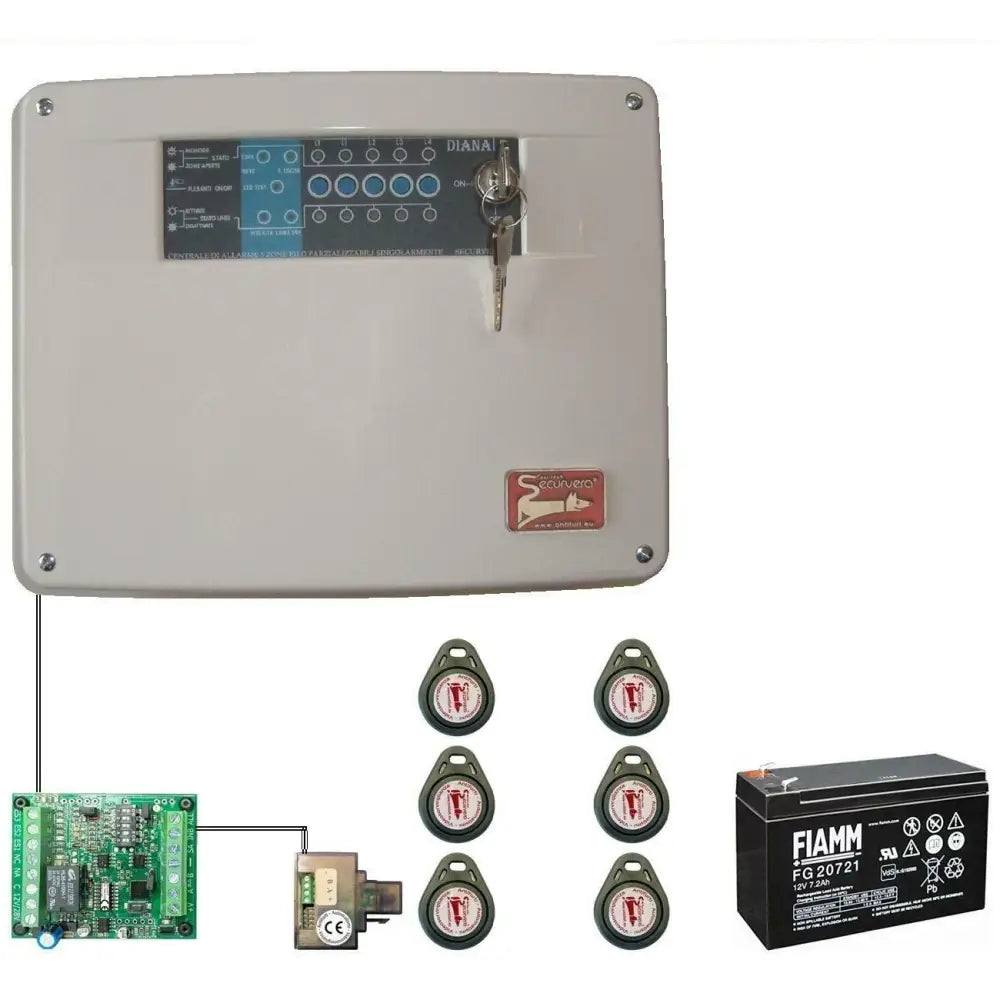

Diana Alarm Control Unit 5 Zones 12 V 7.2 Ah Battery Proximity Key 6 TAG for Wired Alarm System Manages Motion and Burglary Sensors Input for key or Remote Management Command Output for Sirens and GSM Dialer - SH-D2FCULT6TD
Mod. SH-D2FCULT6TD
SKU: SH-D2FCULT6TD
SH-D2F DIANA 2 microprocessor control unit with five zones. One timed zone and 4 immediate. Programming alarm cycles on all zones. The zones can be divided using buttons. Programming via 12 dipswitches of the times: exit, entry, siren and separate alarm cycles. Event signaling via LED. Automatic reset of memories upon insertion. LG 24H guard line and tamper, which can be excluded via jumper, are inactive during the exit time. Two mechanical keys for arming and disarming the system. Bistable and Pulse command input for remote management via GSM Optional. Power supply 220 V. 50/60 Hz. Incorporates 0.8 Ah battery charger. 1 Fiamm 12 V 7.2 Ah "Valve Regulated" battery. One Key Proximity Reader Transponder LAN For 503 Universal with 6 TAGS. Wall installation, suitable for systems with excludable zones. Compatible with standard sensors and sirens. Built according to law. ABS container. Dimensions H218XL279XP83 mm. Weight 1.60 Kg. Assembled product selected in the Securvera Roma factory. Guaranteed by law for 24 months against defects and manufacturing defects. It complies with European use and directives: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08 -2002), EN 60730-1: 2003 CEE89/336 and 93/686 DL 04/12/1992 n. 47. Radio Equipment 2014/53/EU. Electromagnetic Compatibility 2014/30/EU
LIST OF COMPONENTS FOR SALE: DIANA SERIES ALARM CONTROL UNIT FOR A WIRED ANTI-THEFT SYSTEM SECURITY SPARE PARTS ACCESSORIES:
01 SH-D1F Alarm Control Panel 2 Zones 1 Timer. 1 Immediate 220 V Power supply 13.8 V 0.8 A Programmable Times and Functions Input. Remote Key
01 SF-172 Fiamm Accumulator Battery 12 V. 7.2 Ah Hermetic AGM VRLA Valve Regulated System Connection Via Polarized Faston Connections
01 SV-KPD Electronic Proximity Key Processor Memorizes 400 TAGs. Reader or Transponder (503 LAN for any brand and type). 2 TAG Reprogr
04 SV-RKM Proximity Key TAG Security Codes Securvera Frequency 125 KHz We do not recommend the use of non-original keys as they would lock
01 SV-GAR Securvera Warranty Certificate, As per Law: 24 Months. Qualified Installation: DM37/2008 Requirements, Lifetime Against Factory Defects
01 SV-IST Detailed Assembly Instructions; Must Be Respected: Connections and Polarities. The Regulations of law 37 of 22 January 2008
Securvera Registered Trademark 663069: Automated Entrance Control Sensors Alarm Wire and Fire Radio
Instructions or Installation Manual: You will find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Control Unit for Alarm System 5 Excludable NC Zones
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal Anti-sabotage Short Circuit Fuse Control
Country of origin and Manufacturing: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility with other brands: Alarm systems any brand and type of security door openings
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Item Code Model Type: SH-D2FCULT6TD Control Unit for Alarm Systems 5 Excludable Zones
CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL
24 month warranty
