Description

Actuator for coordinated synchronization

Model KATO SYNCRO³ 24V 300N

SKU: 6050504

Adjustable stroke up to 400 mm
Black colour
For the SYNCRO³ version the price is each engine.

Kato Syncro3it is the evolution of the original Nekos patent which now allows perfect coordinated synchronization of up to 8 actuators without the use of external control units.
Synchro3it is the only true synchronization of window actuators on the market and is just one of the many patents that Nekos has registered, confirming the high technology achieved by the company and its R&D department.

Electric actuator with double-row four-link articulated chain, enclosed in a suitable container made of high-resistance composite material (polyamide reinforced with glass fibre).
• Suitable for moving top-hung windows, transom windows, domes and dormer windows;
• Power in traction and thrust 300N;
• Powered at 230V AC 50Hz or, alternatively, at low voltage 24V DC;
• Electronic opening limit switch with variable strokes and selectable at any time via dip-switch. Power absorption closing limit switch;
• Supplied complete with brackets for quick coupling actuator mounting without the use of screws (patented); bottom hung or protruding brackets with quick coupling/release (patented);
• Can be connected in parallel.

Complies with the relevant EU Directives (EMC Directives, Low Voltage Directives).

Applications:
Pivot Window
Attic window
Vasistas window
Protruding windows and doors

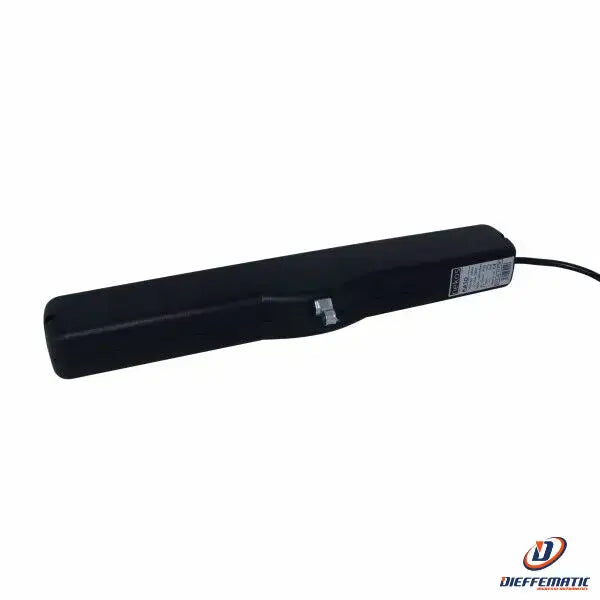

ATTENTION: the image is intended only to represent the product, the aesthetic characteristics of the object may differ slightly
