Home Control Unit For Swing And Sliding Gates Seav Lrs 2212 New Set 93830000 New
Roll over image to zoom in Click on image to zoom

Control Unit For Swing And Sliding Gates Seav Lrs 2212 New Set 93830000 New

Save €6,00
Model: eb-372920289099
Warranty: 24 months
Supplier: Seav
Price:
€113,97 €119,97
COUPON 'BLACK10' -10%
Do you need help with this product? Contact us
Whatsapp-Share
Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 10 days

Description

LRS 2212 NEW SET 433.92 MHz - Code 93830000
Also available on request in the 868.3MHz version

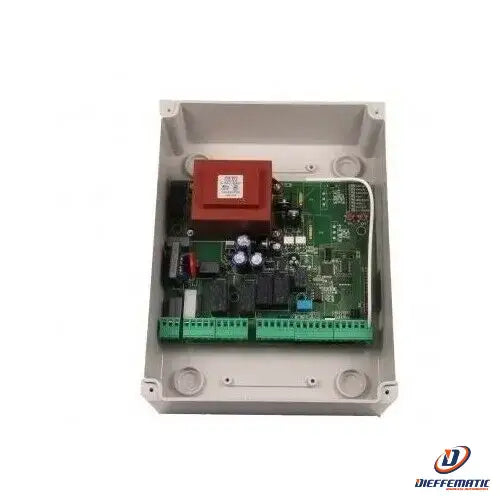

Electronic control unit for swing and sliding gates with built-in radio receiver. 12V electric lock output. Initial motor start-up, motor force adjustment, adjustable slowdown, two limit switch inputs for each of the two motors, management of the operating modes of the control buttons and numerous other functions available. Possibility of inserting optional modules for further functionality.

Power supply: 230Vac 50/60 Hz

2000W Max.
Flashing light output: 230 Vac 50-60 Hz

500W Max.


Motor output: 230Vac

750W Max.
Electric lock output: 12 Vdc 15 W Max.
Photocell power supply: 24 Vdc 5 W Max.
Indicator light output: 24 Vdc 4 W Max.
Control inputs, safety devices and limit switches in BT: 24Vdc
Quantity of memorized radio controls: 120 Max.
Box dimensions: 240x185x110 mm.

Mod. LRS 2212 NEW SET

ATTENTION: the product image is purely indicative and may not fully reflect the aesthetic characteristics of the object that will be shipped.
