Control unit for shutters, up-and-over doors, sliding gates Seav Lrs 2205 Set 96690000

Save €4,03
Model: eb-233470025347
Warranty: 24 months
Supplier: Seav
Price:
€76,64 €80,67
COUPON 'BLACK10' -10%
Do you need help with this product? Contact us
Whatsapp-Share
Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 2-4 business days

Description

LRS 2205 SET 433.92 MHz < Code 96690000

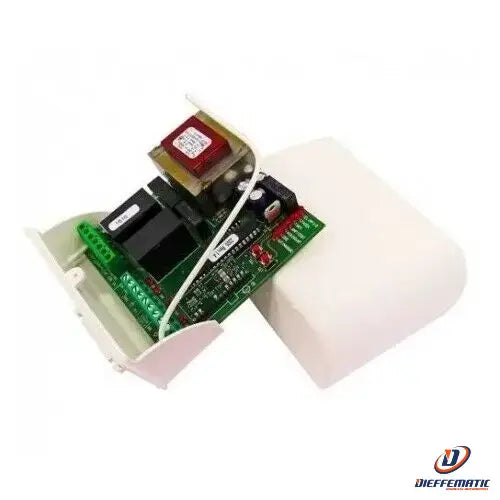

Electronic control unit for rolling shutters, overhead doors and sliding gates with built-in radio receiver. Output for motors up to 1500W. There are 4 inputs that can be selected according to needs, which can be used to connect safety devices, limit switches, emergency blocks or separate buttons for each direction of travel. Motor driver test.
Diet
230 Vac 50/60hz - 2100W Max.
Flashing output
230 Vac - 500W Max.
Motor output
230 Vac - 1500 W Max.
Photocell power supply
24 Vac - 3 W Max.
BT command inputs and safety devices
24 Vdc
Quantity of radio controls that can be stored
75 Max.
Box dimensions
110×121×47 mm

Mod. LRS 2205 SET

ATTENTION: the product image is purely indicative and may not fully reflect the aesthetic characteristics of the object that will be shipped.
