Description
Compass actuator for RWA and ventilation
Mod. EAKL²100
SKU: 6310006
Arm actuator 1000N
Stroke 710mm
Color: Grey
Mounting accessories separately.
The EA-KL² is a further evolution of the previous compass actuator and therefore represents an extraordinary and innovative development for customers. The actuator technology characterized by power and style is unique in the market, and offers many different applications.
Its advantages are:
-Possibility of very wide opening angles.
-Suitable for smoke and heat extraction systems (SHEV).
-Opening times less than 60sec. (in accordance with EN 12101-2 standards).
-High resistance to variable load (ie wind).
-Small footprint, visual appeal due to symmetrical design.
-High performance gear (>20,000 cycles).
-Available in tandem and synchronized versions.
-The intelligent support bracket system allows flexible installations in the center and on the side of the closing edges.
-Application Programming Interface (API).
-Low power consumption - high performance. Support brackets to be ordered separately!

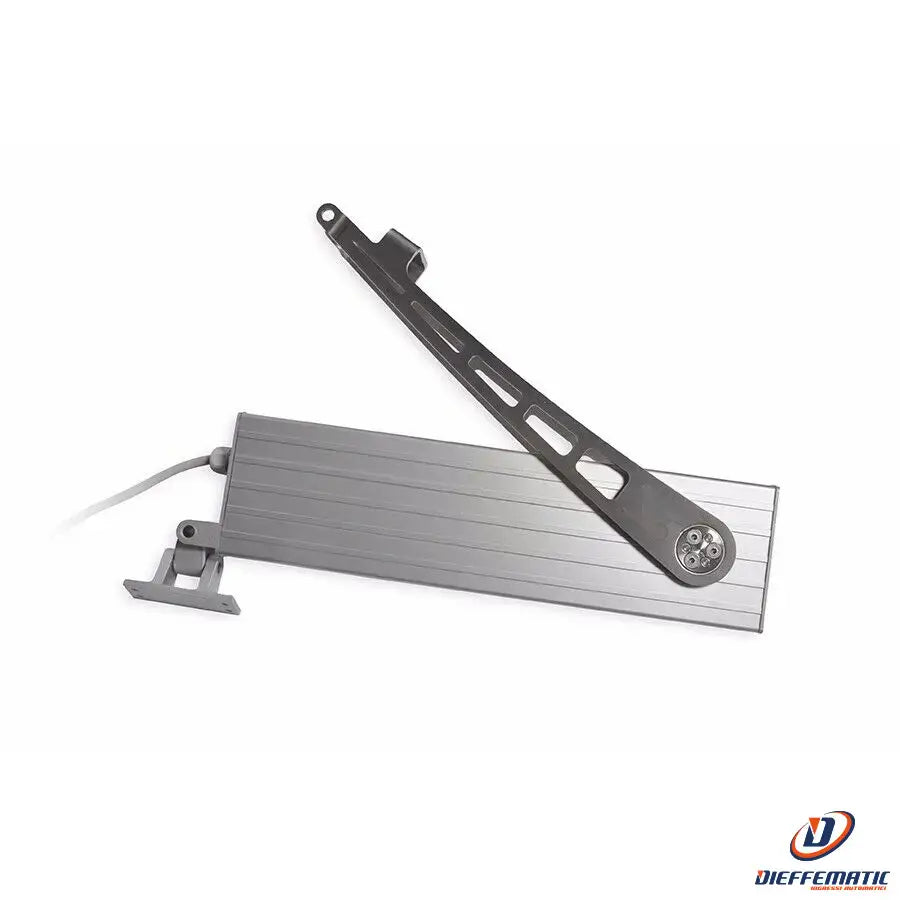

ATTENTION: the image has the sole purpose of representing the product, the aesthetic characteristics of the object may differ slightly
24 months warranty
