Description

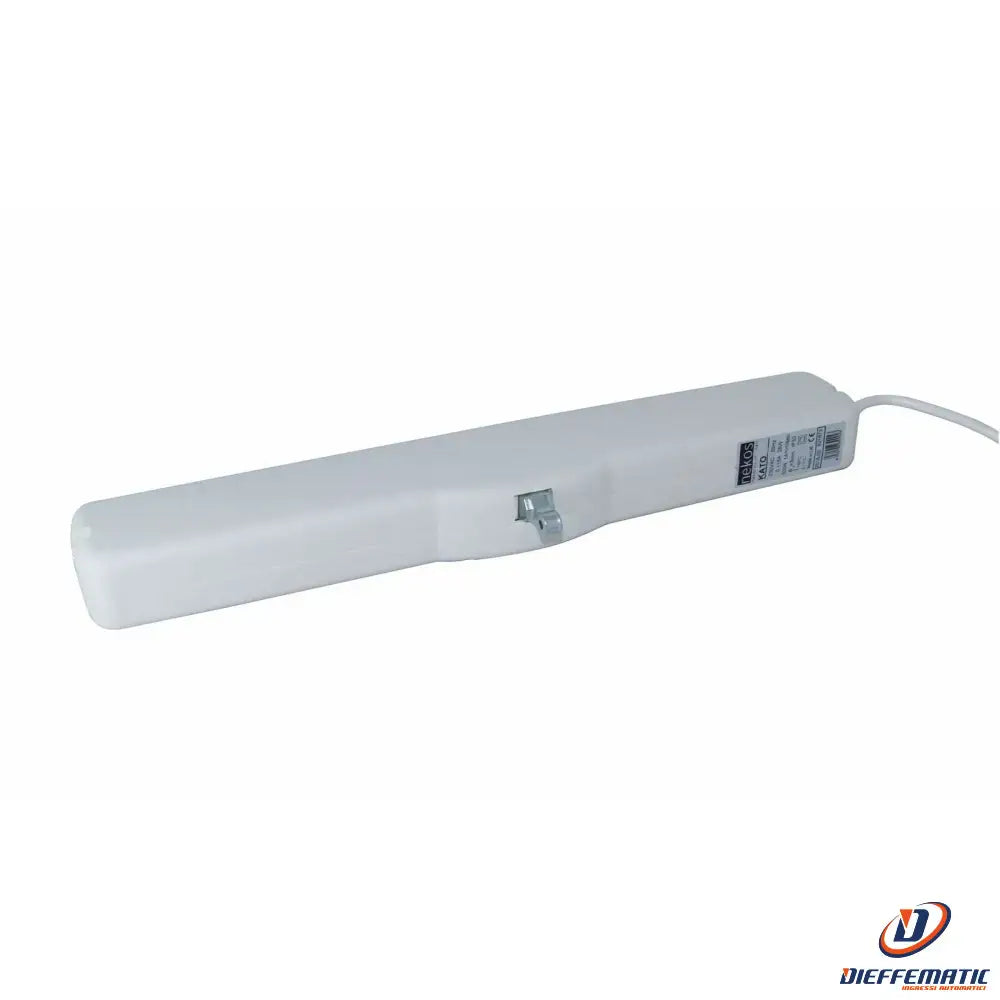

Chain actuator
Mod. KATO 253 24V 250N
SKU: 6050058
Adjustable stroke 240-360 mm
White color
Vertical mounting brackets are not included
Chain actuator for top-hung windows, bottom hung windows, domes and dormer windows. Kato 253 is the wise evolution of Nekos development to meet market needs. Small, smart and cheap! Simple selection of the two strokes mechanically, between 240 mm and 360 mm.
Equipped with a microprocessor with the following functions:
• Progressive starting ramp.
• Power control over the entire stroke.
• Even simpler and more immediate ride selection.
• Relax function for relaxing mechanical parts after each end of stroke.
• Accessories compatible with the entire Kato series.
It has a small size, the body and the brackets are made of high resistance composite material (polyamide loaded with glass fibre).
This actuator also adopts the same patents as the chain actuators produced with Nekos technology, both for the quick-attach support of the actuator and for the leaf connections.
Electric actuator with articulated chain with four links in a double row, enclosed in a suitable container made of composite material, suitable for the movement of top-hung windows, transom windows, domes and dormer windows.
• Power in traction and thrust 250N;
• Powered at 110/230V AC 50/60Hz or, alternatively, at 24V DC;
• Supplied complete with brackets for quick assembly without the use of screws (patented);
• Brackets for bottom-hung or projecting doors with quick coupling (patented);
• Two strokes with mechanical selection on opening;
• Opening and closing limit stop for power absorption and as overload protection;
• Can be connected in parallel.
Complies with the relevant EU Directives (EMC Directives, Low Voltage Directives).
Applications:
Pivot Window
Attic window
Vasistas window
Protruding windows
ATTENTION: the image has the sole purpose of representing the product, the aesthetic characteristics of the object may differ slightly
24 month warranty
