Description

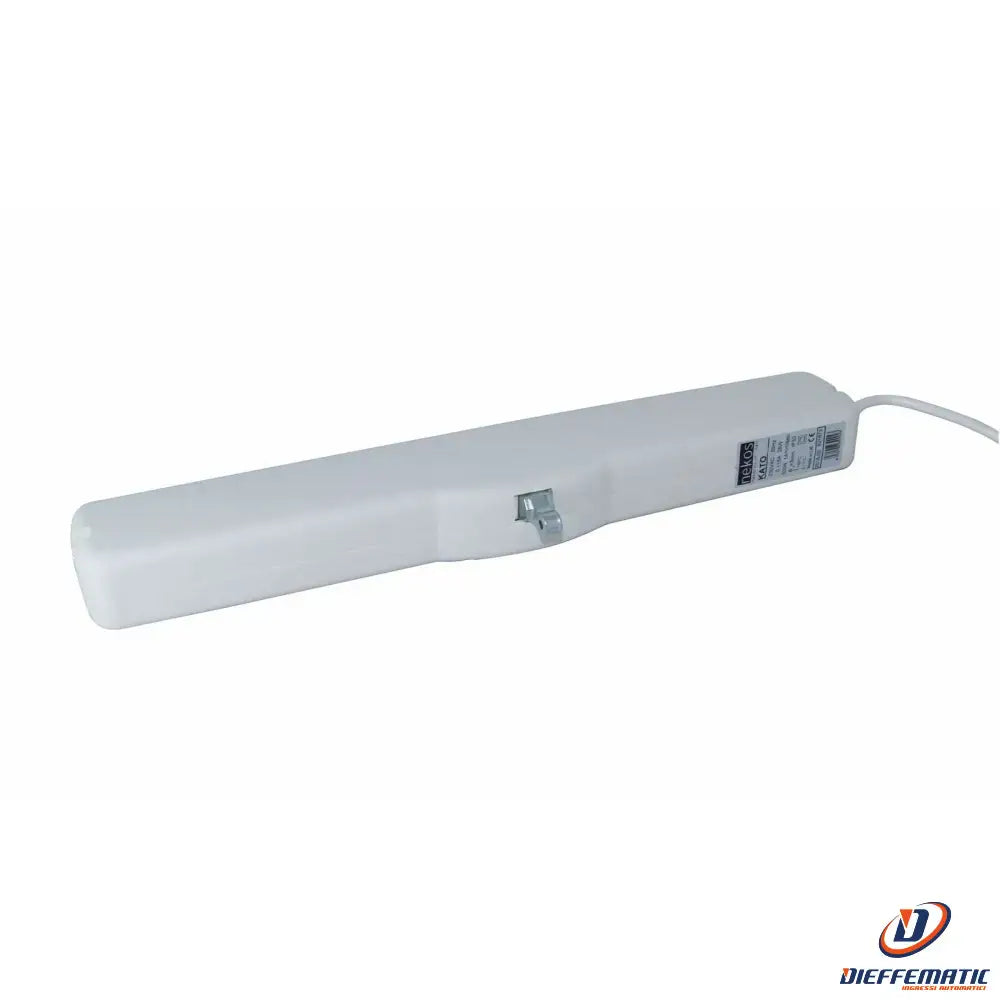

Chain actuator
Mod. KATO 24V 300N
SKU: 6050002
Adjustable stroke up to 400 mm
White color
Technology and reliability have always been the strong points of the Kato chain actuator, the parent of the whole family. An idea that takes the form of a product that has been used for years by window and door manufacturers, dome makers, mansard window manufacturers, electricians and in special applications.
The main features are:
• Brackets for quick coupling of the actuator in its working position.
• Variable and electronically selectable strokes.
• Easy attachment of the chain to the window.
• Relaxation function.
It takes up limited space, only 37x59 cm in section. The body and brackets are made of high-resistance composite material (polyamide loaded with glass fibre).
Electric actuator with double-row four-link articulated chain, enclosed in a suitable container made of high-resistance composite material (polyamide reinforced with glass fibre).
• Suitable for moving top-hung windows, transom windows, domes and dormer windows;
• Pulling and pushing power 300N;
• Powered at 230V AC 50Hz or, alternatively, at low voltage 24V DC;
• Electronic opening limit switch with variable strokes and selectable at any time via dip-switch. Power absorption closing limit switch;
• Supplied complete with brackets for quick coupling actuator mounting without the use of screws (patented); bottom hung or protruding brackets with quick coupling/release (patented);
• Can be connected in parallel.
Complies with the relevant EU Directives (EMC Directives, Low Voltage Directives).
Applications:
Pivot Window
Attic window
Vasistas window
Protruding windows and doors
ATTENTION: the image is intended only to represent the product, the aesthetic characteristics of the object may differ slightly
24 month warranty
