Chain Actuator Nekos Kato 24v 300n 6050001 Automation Automatisms Original

Save €5,74

Model: eb-224166831518
Warranty: 24 months
Supplier: Nekos
Price:
€109,03 €114,77

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 10 working days

Description

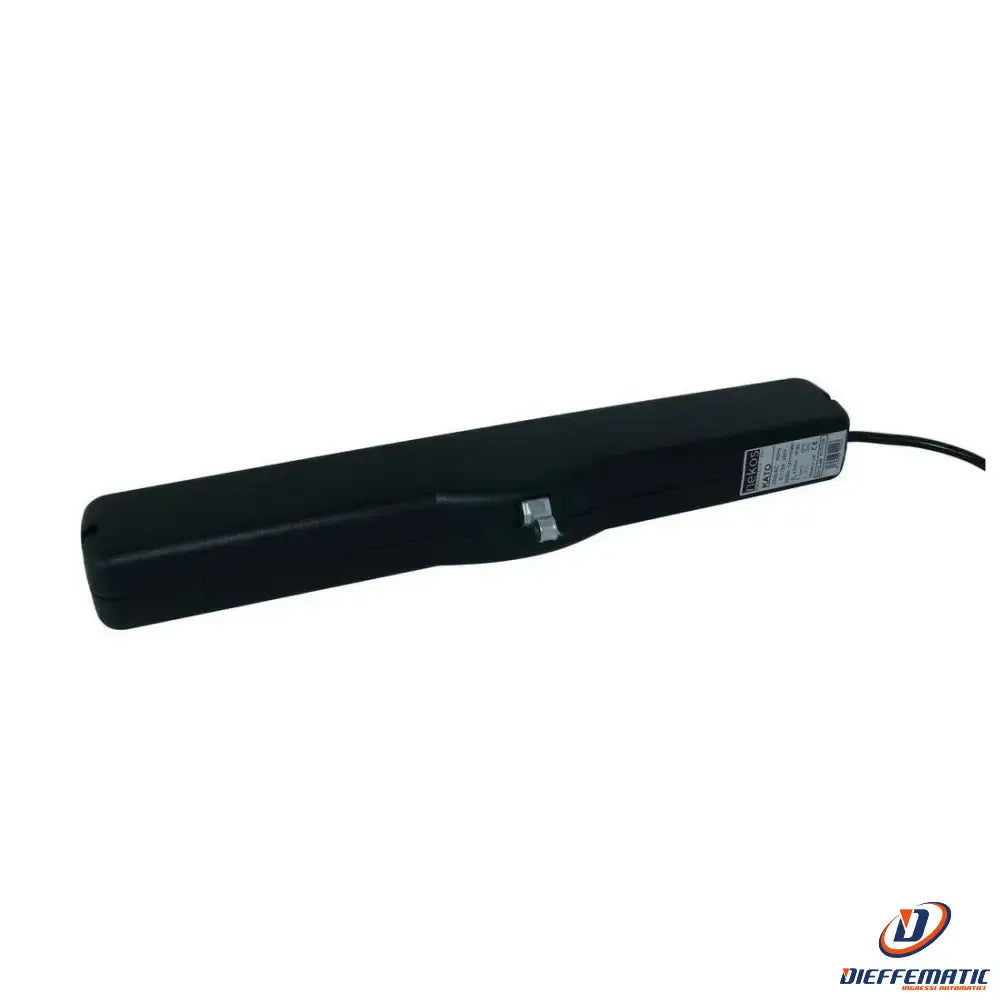

Chain actuator

Mod. KATO 24V 300N

SKU: 6050001

Adjustable stroke up to 400 mm
Black colour

Technology and reliability have always been the strong points of the Kato chain actuator, the parent of the whole family. An idea that materializes in a product that has been used for years by window and door manufacturers, dome makers, manufacturers of attic windows, electricians and in special applications.
The main features are:
• Brackets for quick coupling of the operator in its working position.
• Variable and electronically selectable strokes.
• Easy attachment of the chain to the window.
• Relax function.
It is small in size, only 37×59 cm in section. The body and the brackets are made of high resistance composite material (polyamide loaded with fibreglass).

Electric actuator with double-row four-link articulated chain, enclosed in a suitable container made of high-resistance composite material (polyamide reinforced with glass fibre).
• Suitable for moving top-hung windows, transom windows, domes and dormer windows;
• Pulling and pushing power 300N;
• Powered at 230V AC 50Hz or, alternatively, at a low voltage of 24V DC;
• Electronic opening limit switch with variable strokes and selectable at any time via dip-switch. Power absorption closing limit switch;
• Supplied complete with brackets for quick coupling actuator mounting without the use of screws (patented); bottom hung or protruding brackets with quick coupling/release (patented);
• Can be connected in parallel.
Complies with the relevant EU Directives (EMC Directives, Low Voltage Directives).

Applications:
Pivot Window
Attic window
Vasistas window
Protruding windows and doors

ATTENTION: the image is intended only to represent the product, the aesthetic characteristics of the object may differ slightly

24 months warranty
