Description
GENIUS BRAIN 592 CONTROL CENTRAL
SKU: JA592

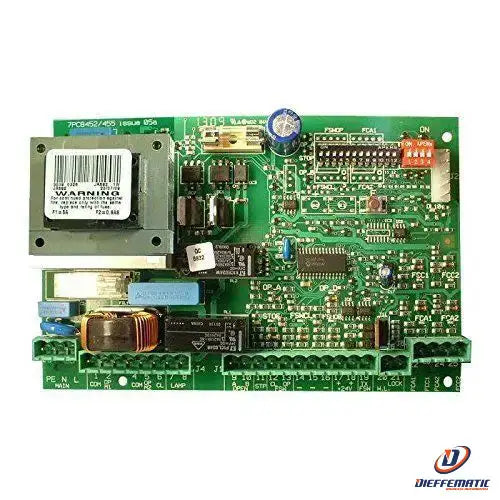

Original FAAC GENIUS JA592 control unit
Replacement electronic board for Genius swing automations which can also be used universally with motors with 230V power supply.
Adjustable via dip-switch, 12Vac/dc output for managing the electric lock and 24Vdc for accessories.
Protection safety devices during opening and closing with LEDs indicating anomalies, opening and pedestrian opening control both via radio and wired, slowing down in both manoeuvres.
Limit switch management, therefore the card can operate two motors with electric limit switches in opening and closing.
Molex 5 pin for connecting the radio receiver (not included in the card) with this solution it is possible to recover the memory of the remote controls and move it to another card.
Power supply voltage 230Vac
Max. engine load 800W
Max. accessory load 500 mA
24 Vdc accessory power supply
Max electric lock load 15 VA
Environmental conditions -20°C +55°C
Protection fuse on primary 5 A
Protection fuse on 800mA accessory line
Dimensions 165×117 mm
24 month warranty
