Description

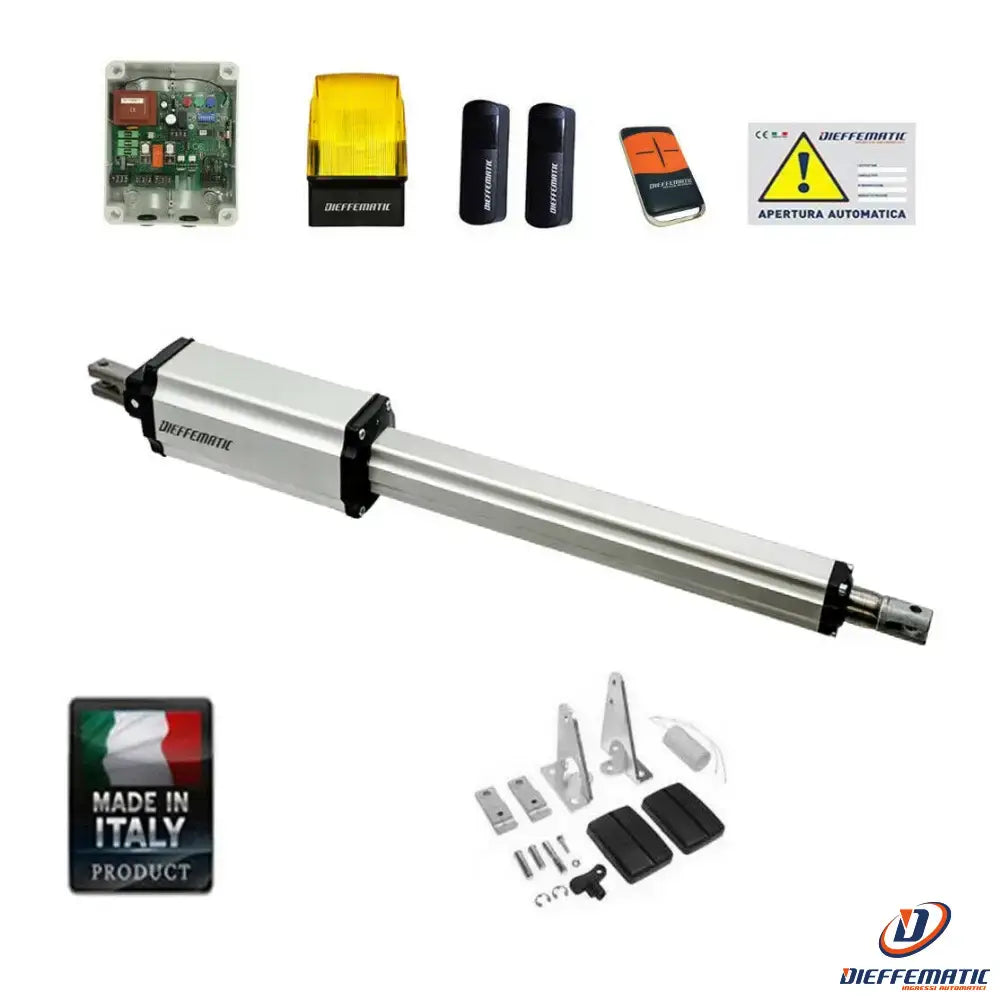

Complete Kit forAutomationGate
SINGLE HINGED door
ENGINE STROKE 300 MM
REVERSIBLE(without mechanical lock)
Professional
**Use for doors up to 3.00 meters and 250kg in weight**
Mod. PM1 230v
Electromechanical linear actuator for condominium use, entirely metal structure, stainless steel stem.
Once installed correctly, PM1 automatic systems no longer need to be looked after,
since their maintenance is practically zero,
the installation does not require any modification to the existing gate!
High performance electric motor.
The actuator is built for leaves that do not exceed 250 kg in weight and 3.00 meters in length,
aluminum body and the heart of the bronze gears guarantee long life.
Control unit with built-in receiver for the control of 1/2 doors.
Electronic clutch with convenient and fast stroke adjustment, possibility of adjusting the second leaf delay.
Slowdowns on opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the possibility of independently managing the travel of the leaves.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
n° 2 hydraulic operator for swing gates for residential use for leaves up to 3m. Requires electric lock.
Engine rpm 1,400. Power 200 W. Thrust adjustable from 500 to 3000 N. Maximum opening angle 120°.
Power supply 220 V. 50 Hz. Weight 6.3 kg
n° 1 control unit with watertight box, with motor force adjustment trimmer and obstacle detector,
slowdown in opening and closing, 4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic.
Pedestrian entrance, Courtesy light, Protection against overvoltages, Input for photocells and safety edges,
Electric lock management,Reversal stroke, adjustable door closing/opening phase shift.
---
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated into the control unit, range 20 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 Pair of wall-mounted photocells
n° 1 230v flashing light
n° 1 Warning sign
n° 1 Installation accessories
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
