Description
Complete Kit forAutomationGate
with TWO HINGED DOORS
Professional
**Use for doors up to 4.00 meters and 350kg in weight**
TRV 230v 600 model
Electromechanical linear actuator for condominium use, entirely metal structure, stainless steel stem.
Once correctly installed, TRV automations no longer need to be looked after,
since their maintenance is practically zero, installation does not require any modification to the existing gate!
High performance electric motor.
The actuator is built for leaves that do not exceed 350 kg in weight and 4.00 meters in length,
aluminum body and the heart of the bronze gears guarantee long life.
The actuator keeps the lock in closing and opening without the need for an electric lock for doors,
convenient release with triangular key located on the motor unit.
Control unit with built-in receiver for the control of ½ doors.
Electronic clutch with convenient and fast stroke adjustment, possibility of adjusting the second leaf delay.
Slowdowns on opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the possibility of independently managing the travel of the leaves.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
n° 2 Electromechanical linear actuator for condominium use, for external uses. Emergency release.
Does not require an electric lock. Engine rpm 1,400. Power 280 W. Thrust adjustable from 500 to 3000 N.
Maximum opening angle 100°. Power supply 220 V. 50 Hz. Weight 6.0 kg
n° 1 control unit with watertight box,with motor force and slowdown adjustment trimmer,
built-in obstacle detector, slowdown on opening and closing, 4 operating logics: step-by-step,
semi-automatic 1 and 2, condominium automatic. Pedestrian entrance, Courtesy light, Overvoltage protection,
Input for photocells and safety edges, electric lock management, reversal stroke,
Adjustable closing/opening door lag, adjustment of re-closing time.
---
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated into the control unit, range 40 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 Pair of wall-mounted photocells

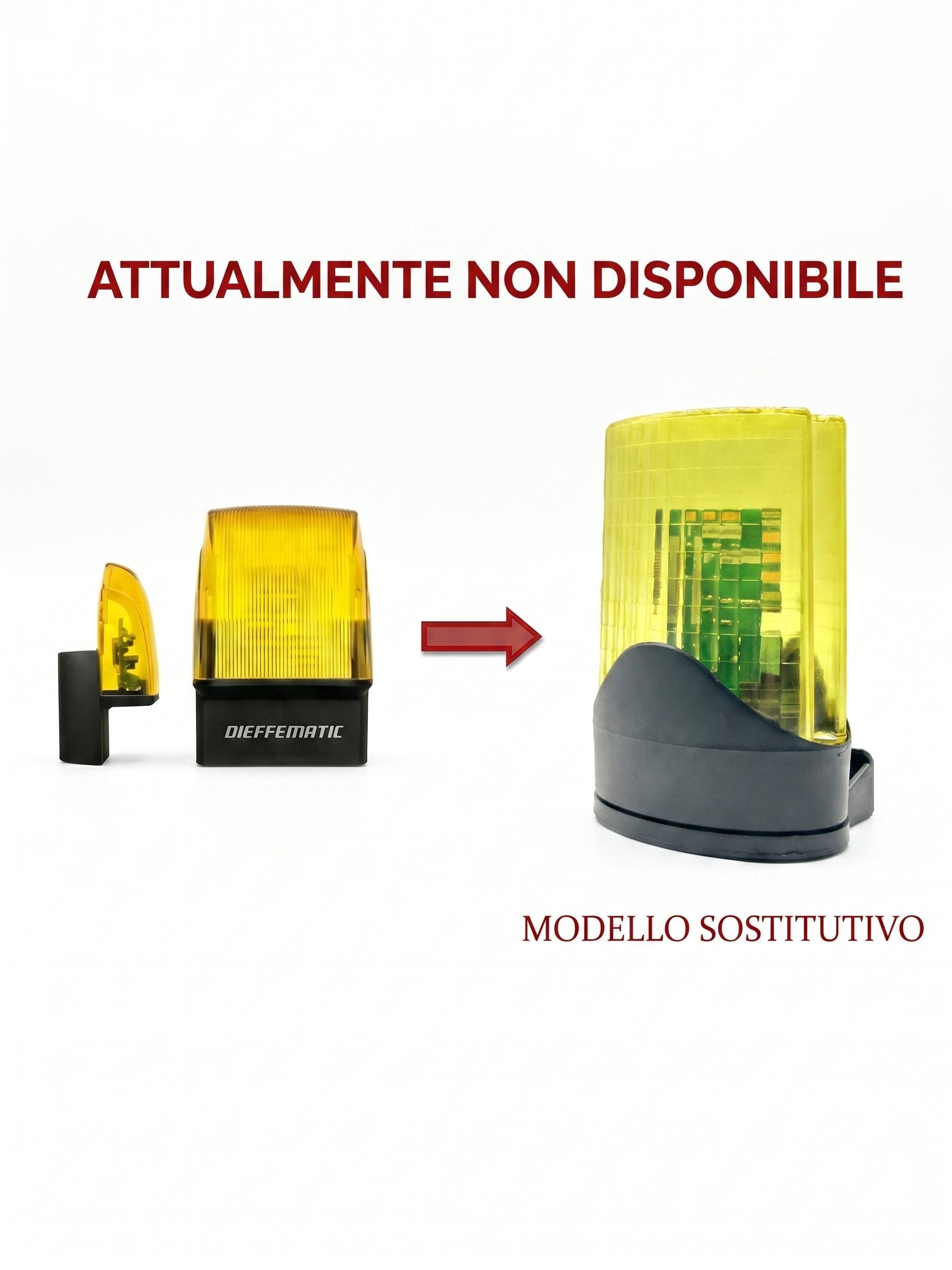

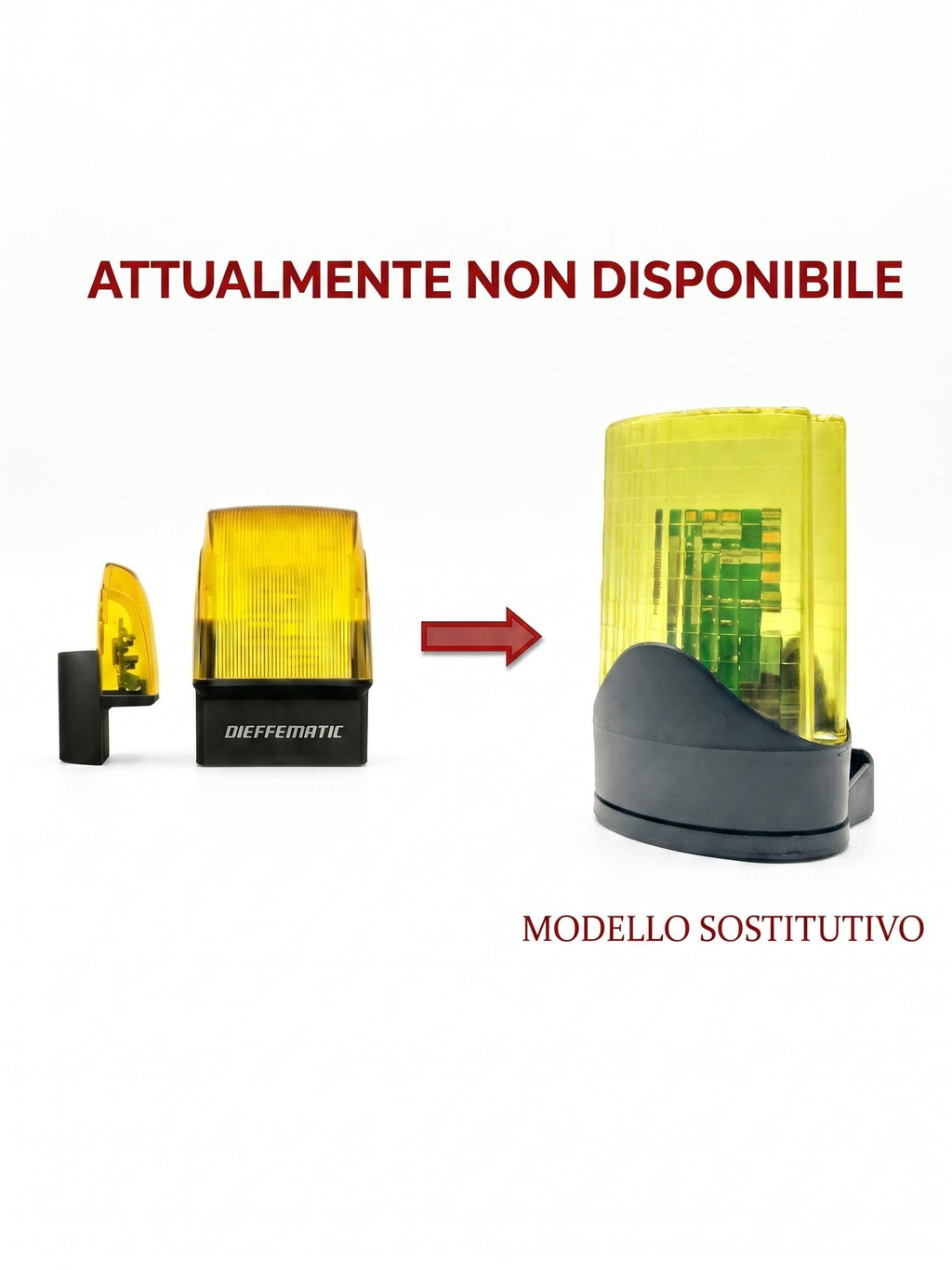

n° 1 230v LED flashing light
n° 1 Warning sign
n° 1 Installation accessories
24 month warranty
