Description

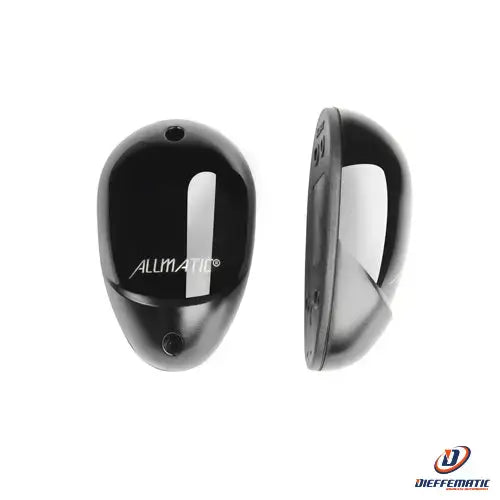

Outdoor photocell with a refined and coordinated design, filter-transparent material to infrared rays
FTALL7 model
SKU: 12005933
Complete with accessories for professional assembly. Maximum immunity to interference, Fresnel lens, 25m range, synchronizable.
Pair of photocells (TX / RX) with modulated infrared light, range up to 25m and new refined circuit designed to guarantee maximum immunity to disturbances and interference. Integrated synchronization circuit (synchro).
The double height column is also available in the case of installations in areas subject to the transit of heavy vehicles.
TECHNICAL FEATURES:
Vdc power supply: 10.5-45
Vac power: 10.5-35
Range: 25m
Relay contact: 1A at 24Vdc
TX 12Vdc current absorption: 8 mA
RX 12Vdc current absorption: 30 mA
TX 12Vac current absorption: 18 mA
RX 12Vac current absorption: 70 mA
Operating temperature °C: -10…+55
Response time ms: 30
Infrared pulse frequency Hz: 550
Infrared wavelength mm: 950
Dimensions mm: 61 x 91 x 34
24 month warranty
