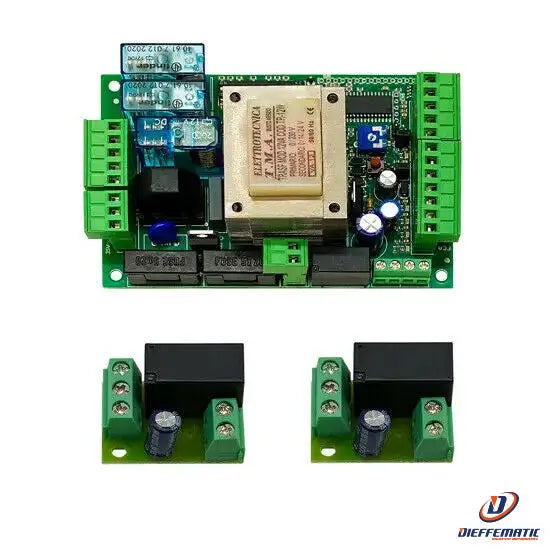

230V control unit with inductive limit switches for sliding gate automation

Professional

The self-learning universal control unit was designed for the automation of access to 1 230VAC motor.

with SLOWDOWNS for sliding and overhead gates.

Real time programming with dip-switch functions, without on-board radio decoding (optional).

TECHNICAL FEATURES:

slowdowns for electromechanical and hydraulic motors,

force adjustment, step by step,condominium,automatic reclosing,start, pedestrian start,

photocell in closing and opening,stop, 2 limit switches, NC mechanical edge,photo-test,

Flashing,courtesy light 120 seconds.

Are available:

- rapid self-learning programming, in which the control unit performs the

learning of the maneuver times and sets the start of the slowdown both in opening and closing at 90% of the manoeuvre.

- professional programming in which the installer can determine the start instant of slowdown

of the leaves, the enabling of the pedestrian opening via radio, the intervention mode of the safety devices.

1. MAIN FEATURES

• Command and control of automated accesses with 1 or 2 230VAC motors (max 1/2 Hp)

• Simplified and professional self-learning procedure for the acquisition: of the maneuver times and of

slowdown, and the presence of safety devices.

• Motor power adjustable by trimmer from 50-100%.

• Customizable partial (pedestrian) opening

• Dwell time adjustable via trimmer from 0 to 60 seconds.

• Obstacle control intervention time adjustable via trimmer between 0.1 and 3.0 seconds.

• Closing motor phase shift adjustable via trimmer between 3 and 30 seconds

• 12V 15W electric lock management

• Courtesy light management

• Built-in 433MHz receiver

• 254 storable radio codes

• Reprogrammable Flash microprocessor

• Complies with the relevant European Directives: R&TTE 99/05/EC

2. TECHNICAL CHARACTERISTICS

Central power supply: 230VAC

Engine output: 2 x 1/2Hp

Motor current: Max 8 Amps

Accessory power supply: 24 VDC - 750 mA

Operating temperature: -20°C / + 55 °C

Programming parameters: stored in EE-PROM

Function manager: microprocessor with watch-dog

24 month warranty
