Description

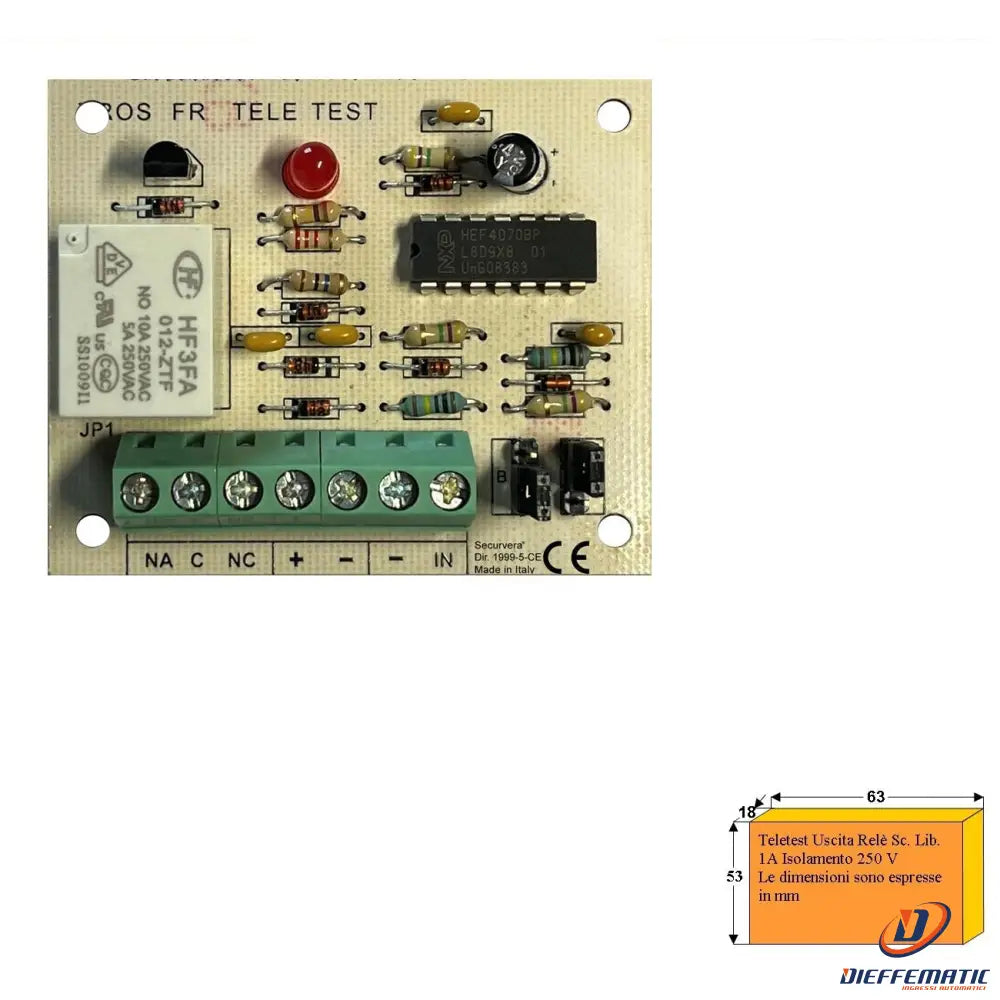

Printed circuit board signals the status change of a controlled device via a changeover relay with volt-free contacts. Handles differentiated pulses and can activate signal devices such as buzzers, sirens, flashing lights, and lamps. Power supply: 12 Vdc
Mod. SS-TSLRASSIDE
SKU: SS-TSLRASSIDE
SS-TSL Status change signaling module for a controlled device. It signals using differentiated pulses (1 A at 24 V relay contact output) and can activate signal devices (lamps, sirens). When voltage is present at the input, it emits 1/2 pulses (see jumper programming); when the voltage disappears, it emits 1/2 pulses (see jumper). The programming jumper determines how many differentiated pulses are emitted when the device it controls is activated and how many when it is deactivated. 12 Vdc power supply. 1 changeover relay, 1 A, 24 V. Useful for controlling a buzzer or lamp to indicate whether a system or device is armed or disarmed. Plastic mounting base. Circuit board with components: L63XH53XS18 mm. Weight: 50 g. Product assembled and tested at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with all standards of the European Directives: UNI EN 12453-EN 12445 CEE 89/336 + 93/68 Legislative Decree 04/12/1992 No. 476. Directive 2004/30/CE:2014/30/UE - EN 50130-4:2012 + A1: 2014 - EN 61000-6-3+A1:2011/AC:2012 - EN 50581:2012. Electromagnetic Compatibility 2014/30/UE
LIST OF COMPONENTS FOR SALE:
01 SS-TSL Circuit for Detecting the Status of a Controlled Device, On/Off or Change in Operating Cycle, with Differentiated Pulse Relay
01 SV-GAR Warranty Certificate, as Required by Law: 24 Months; Qualified Installation under Ministerial Decree 37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Assembly Instructions; The Connections and Functions of the Logic Inputs and Outputs Must Be Observed
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
