Description

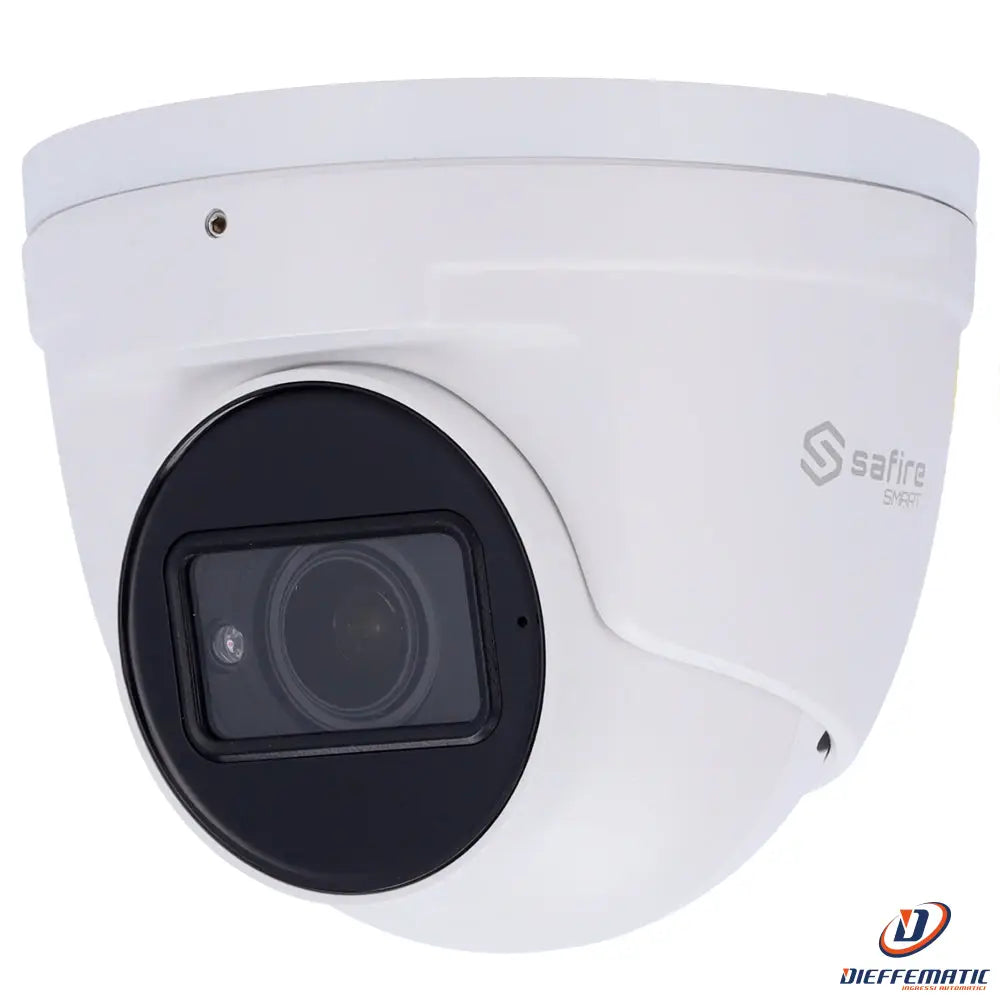

Turret camera
Model SF-T520ZSA-2E1
SKU: SF-T520ZSA-2E1
• Safire Smart
• E1 range 4-in-1 turret camera
• 2 Mpx (1920x1080), 1/2.8" Starlight CMOS
• Motorized lens 2.8~12 mm | IR range 50 m
• 120 dB WDR, HLC, BLC, AGC
• Waterproof IP67 | Built-in microphone
DESCRIPTION:
• Safire Smart
• High-quality, high-performance E1 Professional range
• HDTVI, HDCVI, AHD and analog turret camera
• 1/2.8" CMOS
• 2Mpx (1920x1080)
• 4-in-1 output
• Motorized lens 2.8~12mm
• 0 Lux
• IR range 50 m
• 3D DNR
• IR CUT
• Mirror
• HLC, BLC, AGC, 120 dB WDR
• Waterproof IP67
• Built-in microphone
SPECIFICATIONS:
Brand
Safire Smart
Range
High-quality, high-performance E1 Professional range
Image sensor
1/2.8" CMOS
Maximum resolution
2 Mp (1920x1080)
Resolution
2Mpx (25fps/30fps)
Lens
Motorized 2.8~12 mm (H: 88.6°~34.4°, V: 57.5°~19.7°, D: 96.47°~39°)
Minimum illumination
0.001 Lux @(F1.2, AGC ON)
Infrared illumination
0 Lux / IR range up to 50 m (ICR)
Day / Night
Auto / Color / B&W (Black and white)
Video output
1 x switchable BNC HDTVI / HDCVI / AHD / CVBS
Video output switching
Via DVR (HDTVI by default)
Basic functions
OSD menu (remote)
Configurable OSD functions
3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR
WDR
120 dB
Lens positioning
3-axis
Power supply
DC 12 V / 700 mA, 8.5 W max
Protection rating
Waterproof IP67
Operating temperature
-30° C ~ +50° C
Material
Metal body and plastic mounting bracket
Dimensions
99.6 (H) x 111.5 (Ø) mm
Weight
557 g
CONTENTS:
• Safire Smart turret camera
• 4 wall plugs and 4 mounting screws
• Quick installation guide
• Installation template
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
