Shipping
Shipping in 5-10 business days
Description

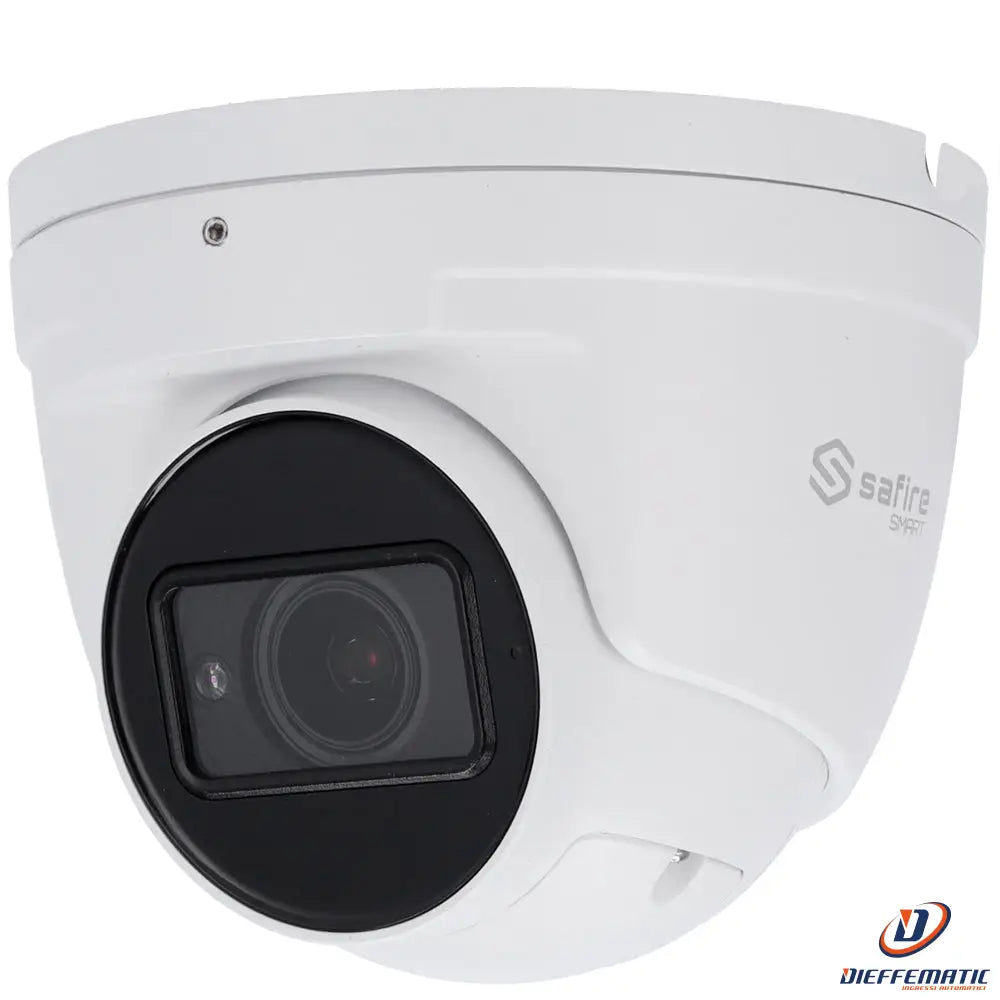

Turret camera
Model SF-T520V-2B1
SKU: SF-T520V-2B1
• Safire Smart
• B1 range 4-in-1 turret camera
• 2 MP (1920x1080), 1/2.8" CMOS
• Varifocal lens 2.8~12 mm | IR range 50 m
• DWDR, HLC, BLC, AGC
• IP67 waterproof rating
DESCRIPTION:
• Safire Smart
• B1 Budget range
• HDTVI, HDCVI, AHD and analog turret camera
• 1/2.8" CMOS
• 2 Mpx (1920x1080)
• 4-in-1 output
• Varifocal lens 2.8~12 mm
• 0 Lux
• IR distance 50 m
• 3D DNR
• IR CUT
• Mirror
• HLC, BLC, AGC, DWDR
• IP67 waterproof rating
SPECIFICATIONS:
Brand
Safire Smart
Range
B1 Budget range
Image sensor
1/2.8" CMOS
Maximum resolution
2 MP (1920x1080)
Resolution
2 Mpx (25 fps)
Lens
Varifocal 2.8~12 mm (H: 93°~37°, V: 52°~21°, D: 107°~43°)
Minimum illumination
0.01 Lux @(F1.2, AGC ON)
Infrared illumination
0 Lux / IR range up to 50 m (ICR)
Day / Night
Auto / Color / B&W (black and white)
Video output
1 x switchable BNC HDTVI / HDCVI / AHD / CVBS
Video output switching
Via DVR (HDTVI by default)
Basic functions
OSD menu (remote)
Configurable OSD functions
DWDR, 3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR
Lens positioning
3-axis
Power supply
DC 12 V / 500 mA, 6W max
Protection rating
IP67 waterproof rating
Operating temperature
-30° C ~ +50° C
Material
Metal body and plastic mount
Dimensions
99.6 (H) x 111.5 (Ø) mm
Weight
540 g
CONTENTS:
• Safire Smart turret camera
• 4 wall plugs and 4 mounting screws
• Quick installation guide
• Installation template
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
