Description

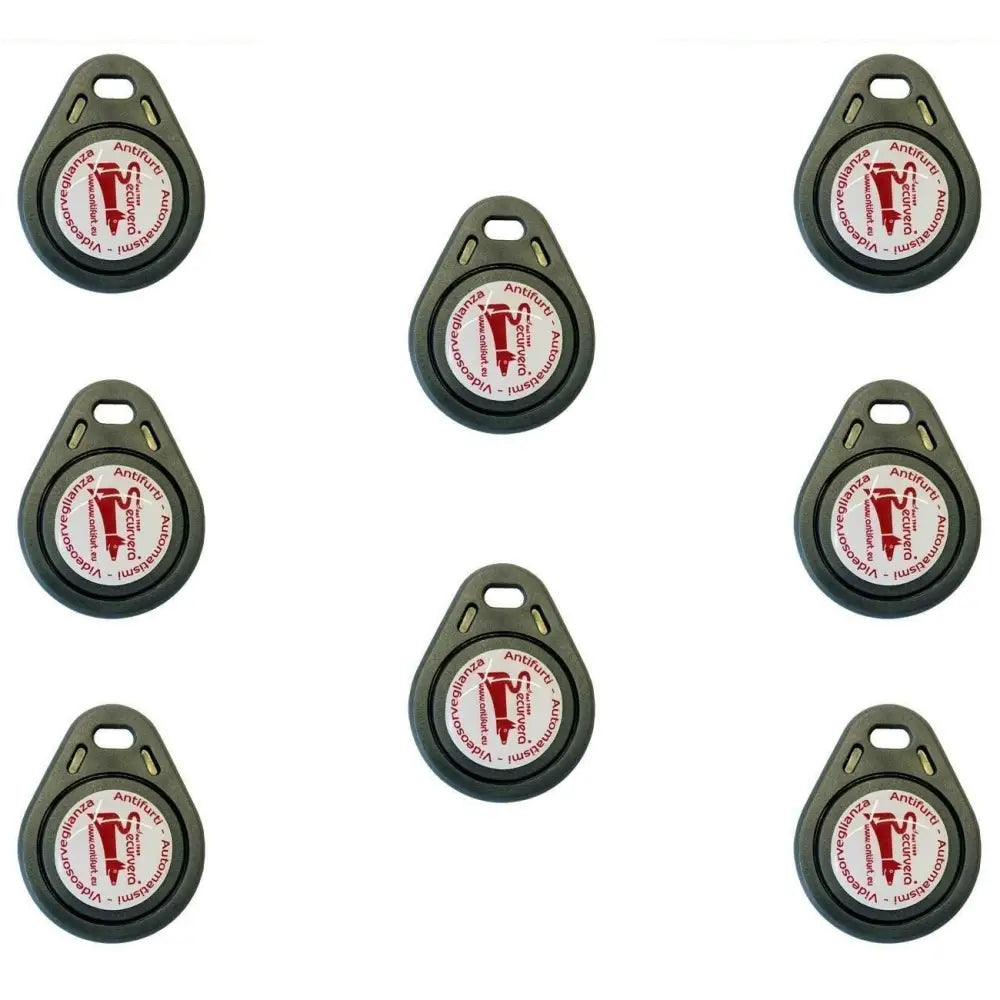

8-Tag High-Security Proximity Transponder with Unique Securvera Code, 125 KHz Radio Frequency, Key Ring Hole, Dimensions L40XL32XS6 mm, Weight 5 g - SV-RKM8CPTCSE
Mod. SV-RKM8CPTCSE
SKU: SV-RKM8CPTCSE
SV-RKM high-security electronic proximity keys; eight transponders or TAGs with a hole for attaching to a key ring. EM-4100, 125 KHz frequency. Unique Securvera magnetic code. When brought close to the reader, the coil is energized and powers the circuit, which returns two codes: one basic Securvera code and one Rollin Code. Once the processor has recognized them, it activates the control relay. Processor specifications for the intended application: Learns 400 SV-RKM high-security proximity keys with Securvera code. With the learning function activated, bring the key close to the SV-LPD reader; the LED lights up to confirm recognition of the new key. Three O.C. negative outputs, 100 mA, for zone partitioning or activation of a micro-relay. Negative output for counterfeit key detection. INB input +/- for control panel status signaling. Standby current draw: 3 mA. Power supply: 12/24 Vacdc. Volt-free changeover relay, 2 A at 24 V. Key dimensions: L40XL32XS6 mm. Weight: 5 g. Complies with CEI 79/2-3 safety standards. CEI EN 50130-4 directives. CE marking under Directive 99/5/EC. Product assembled and selected at the Securvera factory in Rome. Guaranteed in accordance with the law against manufacturing defects and faults
LIST OF COMPONENT/S OR KIT: ELECTRONIC KEY FOR ACTIVATING ALARM SYSTEMS OR OPENING DOORS AND GATES:
08 SV-RKM Securvera-code proximity key TAG, Fr. 125 KHz. We advise against using non-original keys; the system will lock
01 SV-GAR 24-month warranty certificate, lifetime coverage against manufacturing defects: installation by qualified personnel, Ministerial Decree 37/2008
01 SV-IST Detailed installation instructions; follow all requirements for fastenings and special connections (PDF manual)
Securvera Registered Trademark 663069: Automation, access control, wired and wireless alarm sensors, fire protection
Instructions or installation manual: See below for "CLICK TO GET THE GUIDE OR MANUAL"
Use, application and functions: Proximity key for activating, triggering and deactivating an alarm system
Italian manufacturer of CE products: Fire alarm control panels, smoke and temperature sensors, sirens
Electrical protection against stress: Reverse polarity, counterfeit key detection, circuit inhibition, tampering
Country of origin and manufacture: Made in Italy at the Securvera factory and carefully selected
Payment methods: State tax deductions or tax accounting by traceable bank transfer
Warranty beyond the statutory period: Securvera lifetime warranty against manufacturing defects and faults
Compatibility with other brands: Alarm systems of any brand and type; security door opening systems
Installation instructions manual: Read the manual carefully for weights, dimensions, functions and required accessories
Item code, model and type: SV-RKM8CPTCSA Proximity key for alarm systems and door opening
CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL
