Description
AUTOMATION KIT FOR GARAGE DOORS - GARAGES - SPRING-BALANCED UP-AND-OVER DOORS
Model V26
High-performance operator designed for spring-balanced up-and-over doors for garages, carports and storage units. With 800N of thrust and belt drive, this kit can move light or heavy up-and-over doors (up to 12 MQ) precisely, ensuring smoother operation than traditional chain-drive systems.
Accessories and Connectivity: The KIT is fully modular and allows optional accessories to be integrated to maximise safety and convenience, such as a Flashing Light, Photocells and External Release. The system can also be upgraded to a Smart version by purchasing the dedicated additional component separately, the V26 WiFi Module, a Plug & Play dongle that lets you control the door using a smartphone or voice commands via Alexa and Google Home. Receive real-time notifications about the door status and share digital access securely, eliminating the need for additional remote controls with quick installation requiring only a few technical precautions.
Technical Description and Specifications: The 24V V26 operator delivers quiet and safe operation. Thanks to Encoder technology and the anti-crushing system (EN 12453), the motor detects obstacles and immediately reverses direction.
Technical Specifications
Model: Dieffematic V26
Motor Power Supply: 230V AC (24V transformer included)
Maximum Thrust: 800 N (doors up to 100kg / 12mq)
Motor Speed: 220 RPM
Drive: Quiet belt drive preassembled on a galvanised steel rail.
Safety: EN 12453 anti-crushing system and deceleration
Protection Rating: IP30
Noise Level: < 30 dBA (Extremely quiet)
Convenience: 24V 5W LED courtesy light (timed for 3 min)
Radio Decoding: Rolling Code (Maximum protection)
User Manual:
View the official instruction manual

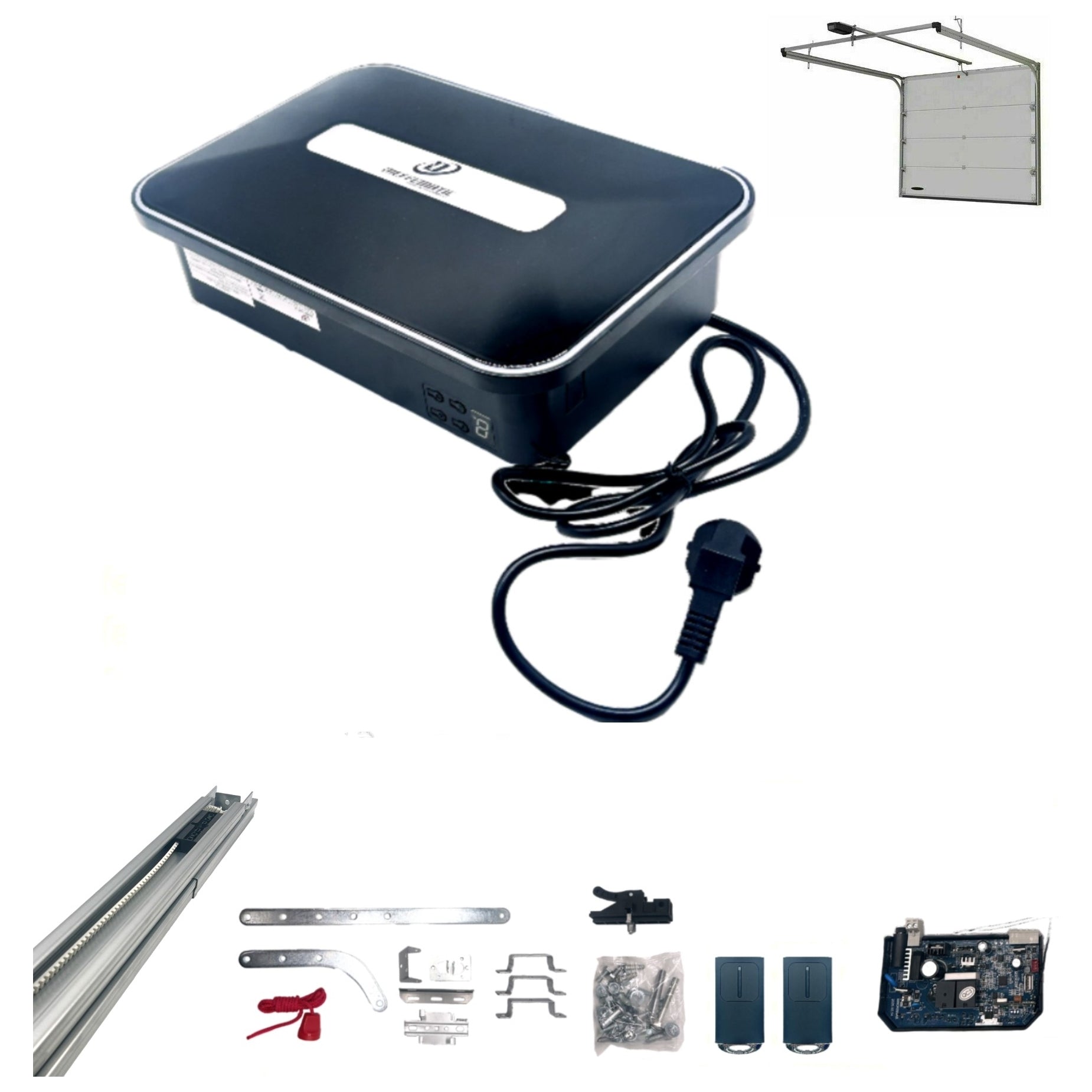

Kit Contents:
1 x V26 24V gear motor with built-in control unit and receiver.
1 x galvanised steel rail with belt, 3.30m long, divided into 2 sections.
2 x 433.92 MHz Rolling Code remote control transmitters.
Mounting accessories and emergency manual release.
Note: This kit is optimised for spring-balanced doors and does not require the additional bracket
24-month warranty
