Bft Swing Door Automation Kit Giuno Ex Lux Bt 2b R935262 R935330 00001

Save €49,53

Model: eb-264387301379
Warranty: 24 months
Supplier: Bft
Price:
€941,00 €990,53

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 10 days

Description

BFT

GIUNO ULTRA BT KIT A20 ITA

Product code R935330 00001

Complete kit for swing gates with 24 V hydraulic operator for leaves up to 2 m.

300 kg weight and very intensive use. Maneuver time 14 s.

Control units with display and new simplified scenario programming.

Thanks to the exclusive selectable block system, all operators can be transformed into reversible,

with lock on opening, lock on closing or double lock. All by simply turning a key.

New magnetic limit switch system which, combined with D-Track technology, allows maximum maneuvering and positioning precision.

Double sensor system to define the slowdowns at the end of the maneuver in detail.

Command centerTHALIA P
Board power supply230V
Motor voltage24V
Absorbed power90W
Max. width swing2 m
Max. weight swing300kg
Useful rod stroke270 mm
Maximum angle110°
Maneuver time14 s
Limit switch typeMagnetic
SlowdownYes
BlockSelectable opening/closing
UnlockingTriangular key
Impact reactionD-Track, U-Link
Frequency of usevery intensive
Degree of protectionIP55
Environmental conditions-20 ÷ 60 °C
U Linkno

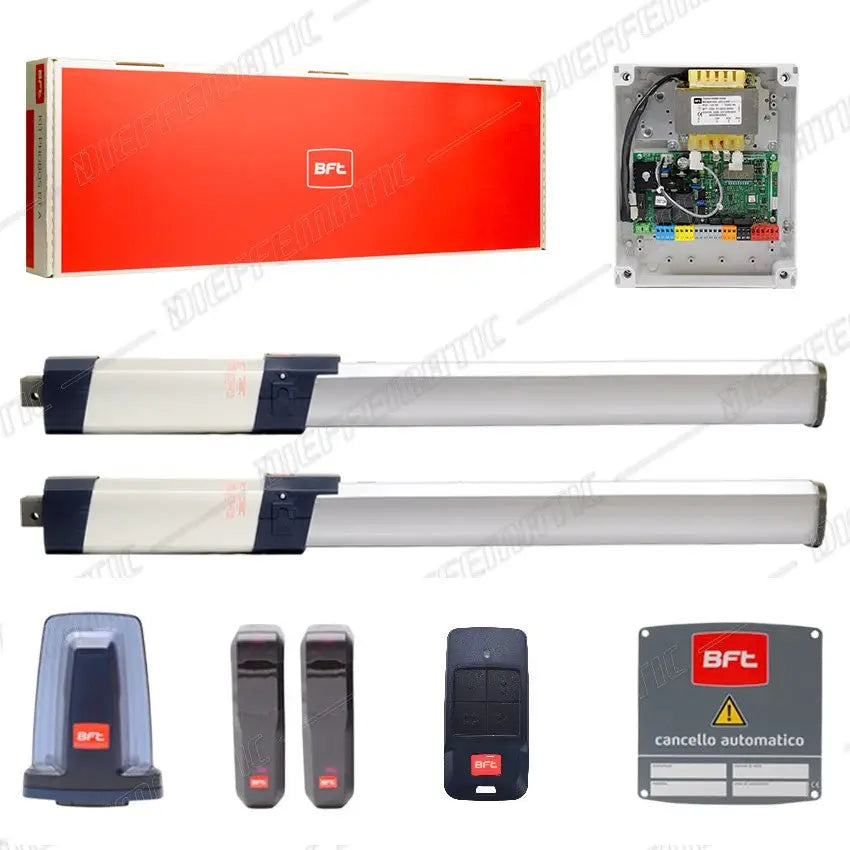

COMPOSITION OF THE KIT:

N.2 GIUNO ULTRA BT A20
24 V hydraulic operator for swing doors up to 2 m. 300 kg weight and very intensive use. Maneuver time 14 s.

N.1 MITTO B RCB04 R1
4 channel transmitter. Range 50/100 m. 12 V power supply with 1 23 A battery.

N.1 THALIA
Control panel for 1 or 2 24V operators for electromechanical and hydraulic swing gates with electric lock management,

N.1 RADIUS B LTA 24 R1
Flashing light with integrated antenna for 24 V powered engines.

N.1 COMPACTA
Pair of self-aligning photocells. Range 30 m. 24 V ac/dc power supply.

N.1 Q.BO KEY WM AV
Vandal-proof key selector with metal structure.

N.1 CMS
Warning sign.

24 month warranty
