Description

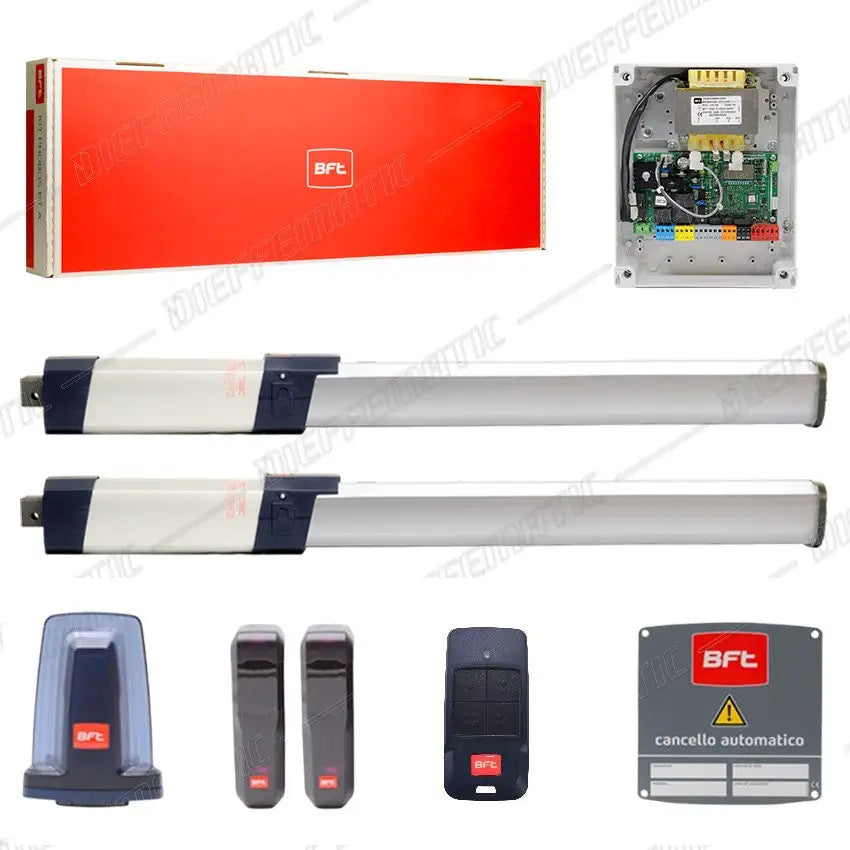

BFT PHOBOS AC KIT A50 Complete 230 V kit for swing gates up to 500 kg in weight and 5 m in length. KIT COMPOSITION: N°2 PHOBOS AC A50 No. 1ALENA ACL2 24 month warranty
Product code R935305 00002
Electromechanical automation systems for swing gates
230 V electromechanical irreversible operator for swing gates up to 500 kg in weight and 5 m in length.
Magnetic pin: exclusive feature of Bft operators which allows installation with maximum comfort,
blocking the operator in the rear bracket without the use of tools.
For safe transmission.
BFT transmitters use a Rolling Code coding system
which manages the commands in complete safety and prevents any type of external violation.
Pressing a button on the transmitter sends an always different code to the control unit,
identifiable only by the recipient and accepted only once.
The generated algorithm then prevents the code from being reproduced.
Command center ALENA SW2 Board power supply 230V Motor voltage 230V Absorbed power 210W Max. width swing 5 m Max. weight swing 500kg Useful rod stroke 460 mm Maximum angle 129th Maneuver time 18 s Limit switch type Work time Slowdown no Block Mechanical Unlocking Personalized key Impact reaction Electronic clutch Frequency of use Semi intensive Degree of protection IPX4 Environmental conditions -20 ÷ 55 °C U Link no
P935097 00002
ALTAIR P control panel.
No. 1RADIUS B LTA 230 R1
Flashing light with integrated antenna for 230 V powered engines.
No. 1COMPACT
Pair of self-aligning photocells. Range 20 m. 24 V ac/dc power supply.
No. 1Q.BO KEY WM
Outdoor key selector with double contact.
No. 1MITTO B RCB04 R1
4 channel transmitter. Range 50/100 m. 12 V power supply with 1 23 A battery.
No. 1CMS
Warning sign.
